Two laboratories can test comparable material on similar frames and still report different yield results if they use different control modes, strain inputs or calculation rules. Those differences can originate in the software layer rather than in the frame itself.
That is why universal testing machine software deserves the same scrutiny as the force and strain measurement systems. This guide follows the software workflow from method definition and machine control through calculations, reporting and traceability.
Control Comes Before Anything Else
A tensile test is not simply pulling until something breaks. The standard tells you how fast to pull, and it usually says so in terms of a quantity the crosshead does not measure directly. That leaves the software to close the loop.
Displacement control moves the crosshead at a set rate. It is stable, it is simple, and it is what most routine work runs on. Force control raises load at a set rate instead, which suits the early part of a test and methods written around stress rate. Strain control drives the loop from the extensometer, so the specimen itself sets the pace rather than the machine.
The distinction matters because a method may call for different modes in different phases. ISO 6892-1 allows a closed-loop strain rate approach as well as a stress rate approach, and the two are not interchangeable when the material has a pronounced yield point. Software that can only pull at a fixed crosshead speed will still produce a curve, and the curve will still look convincing, but it will not be the test the standard described.
Standards are usually less prescriptive here than people expect, and that is the trap. ASTM E8 and E8M allow the speed of testing to be set several ways, including strain rate, crosshead separation rate and stress rate, and the option chosen has to be reported with the result. Software that records which rule was used, rather than only the number that came out, saves an argument later when two laboratories compare yield strengths and find they were never running the same test.
Methods Turn a Standard Into Something a Shift Can Repeat
A written standard is a document. A method is that document expressed as machine settings, and it is the single most useful thing testing software does.
In practice a method carries the control steps and their changeover conditions, the channels that are recorded, the calculation rules applied afterwards, and the layout of the report. Once those live together, the same test runs the same way on Tuesday morning and on Friday night, and a new operator inherits the decisions rather than remaking them.

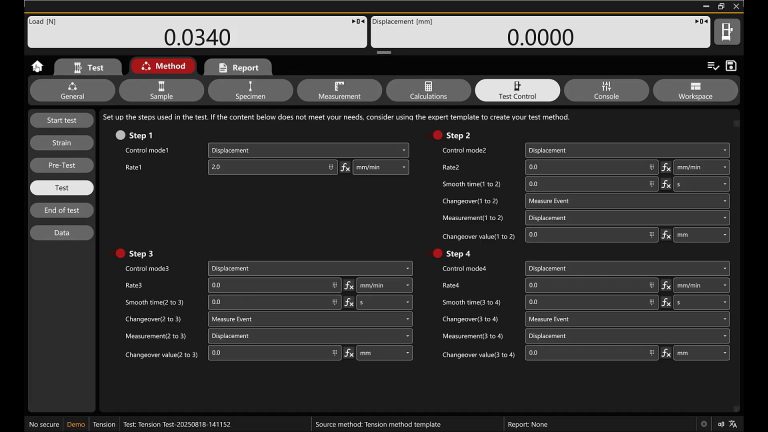

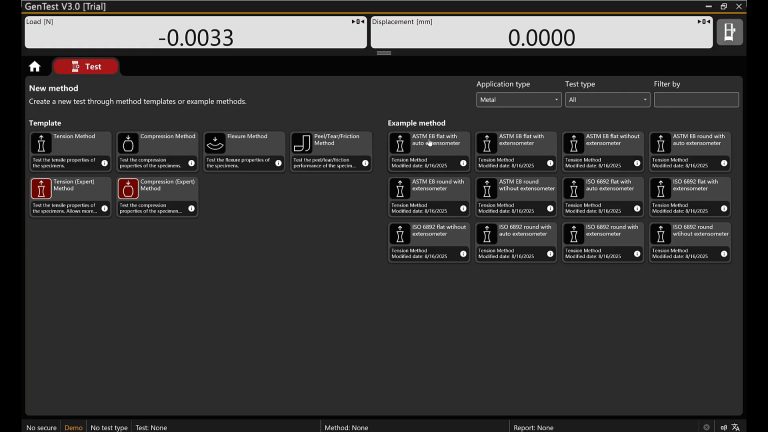

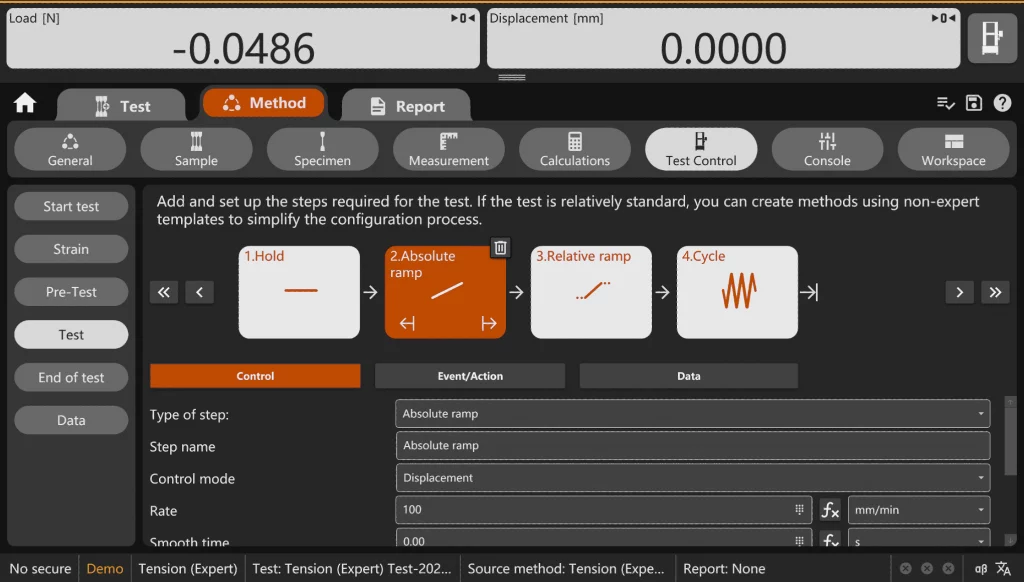

Our own GenTest is built this way. Methods are created from normal or expert templates, or from example methods aligned with common standards-based workflows, and each method is a sequence of steps with its own control logic and changeover conditions. Tensile, compression, bending and shear all run from the same structure, so the laboratory learns one logic rather than four.
Extensometry Decides Which Results Are Real
Crosshead travel includes deformation and movement in the frame, the load train, the grips and the specimen, so it should not automatically be treated as specimen strain. For modulus, for proof or yield stress and for strain rate controlled testing, the method has to use a strain measurement system that meets the requirements of the governing standard.
An extensometer measures the specimen directly, and the software has to do three things with it. It has to record the channel at a rate fast enough to catch yield, it has to let the method decide when the device is removed, and it has to make clear which strain source produced each reported number. Extensometer classification under ASTM E83 and ISO 9513 exists precisely because that accuracy class limits which properties you are entitled to report.
The practical failure is quiet. A method that keeps calculating modulus from crosshead data after the extensometer has been removed will publish a number for every specimen, and nobody notices until an audit asks where strain came from.
Calculations Should Be Auditable, Not Automatic
Software that prints ultimate tensile strength is easy. Software that shows which points on the curve produced it is what a laboratory actually needs.
Yield is the clearest example. Under ISO 6892-1 a material with discontinuous yielding can be characterized by upper and lower yield strength, written ReH and ReL, while a material without a defined yield point commonly uses proof strength Rp at a stated offset. ASTM E8/E8M uses its own terminology and calculation requirements. Testing software therefore has to apply the rule set and the terminology that belong to the selected standard rather than reducing every method to a generic yield strength. GenTest calculates ultimate tensile strength, yield in the ReL, ReH and Rp forms, and elongation, with the calculation rules stored in the method rather than typed by the operator each time.
Two habits keep this honest. Look at the curve before accepting the number, every time, because a slipped grip and a genuine yield drop can look similar in a table and never look similar on screen. And keep the raw data, not only the summary, so a disputed result can be recalculated instead of re-tested.
Real Time Views Are Not Decoration
Watching a test live is the cheapest quality control a laboratory has. Stress against strain shows whether the specimen is behaving; load against displacement shows whether the grips are; load against time exposes a control loop that is hunting rather than holding.

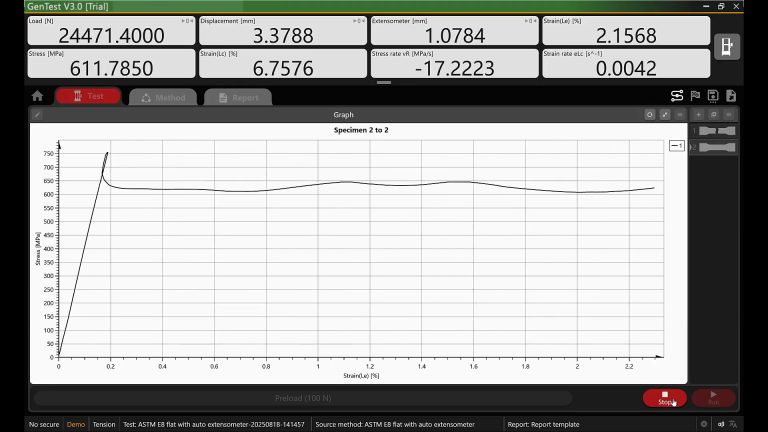

Views like these are standard in GenTest, and the reason to name them here is practical rather than promotional. An operator who watches the curve stops a bad run in the first ten seconds. An operator who only sees the summary discovers the problem after the specimen is gone.
Sampling rate deserves the same attention, and it rarely appears on a specification sheet. Channels recorded too slowly round off the very features a tensile test exists to capture: a sharp upper yield point can be clipped, a peak load can land between two samples, and a serrated curve can be smoothed into something tidy that never happened. The rate needs to suit the test rather than the disk, and a laboratory that runs fast tests on thin specimens should ask for that number specifically.
Reporting Is the Part Auditors Actually Read
The report is the deliverable. Everything else is machinery that produces it.
A report that survives review carries the specimen identity and dimensions, the method and its revision, the machine and the load cell used, the operator, the date, the environmental conditions when they matter, the results with their units, and the curve. Unit flexibility matters more than it sounds, because a laboratory serving both metric and imperial customers should not be retyping numbers between systems, which is where transcription errors come from.
Export matters for the same reason. Results that leave the software cleanly, in a format a quality system can ingest, stop the copy and paste step that quietly breaks traceability.
Traceability Is Where the System Gets Tested
Laboratories working to ISO/IEC 17025 are asked to show that a result can be traced back to the equipment, the method and the person who produced it. Software helps or hinders exactly here.
The questions an assessor asks are consistent enough to design for.
- Which method produced this result, and can you show the version that was in force on that date.
- Which machine and load cell, and is the verification current under ASTM E4 or ISO 7500-1.
- Where did strain come from, crosshead or extensometer, and what class was the device.
- Who ran it, and can a result be changed afterwards without leaving a trace.
- Can the raw data be produced if the calculation is questioned.
Regulated environments raise the bar again. Where test records or electronic signatures are used to satisfy FDA predicate rule requirements and are kept or relied on in electronic form, 21 CFR Part 11 may apply. That is a records governance and system validation question rather than a software feature, so the intended regulatory use belongs in the purchase conversation rather than in the first audit.
Software Cannot Rescue a Machine That Is Out of Verification
Software can make a valid test repeatable, but it cannot compensate for a force measuring system outside its verified status, for worn grips that let the specimen slip, for an extensometer used outside its class, or for a load cell chosen so large that the test lives in the bottom few percent of its range. In an accredited workflow those conditions have to be resolved before the result is treated as conforming test data.
Software makes a good test repeatable and a bad test consistent. Only calibration, fixturing and specimen preparation decide which of the two you have. Our verification and certification service exists for that side of it, and the grips and fixtures range covers the other.
Where GenTest Fits in All of This
GenTest is our data acquisition and test control environment for universal testing machines. It is method driven, it runs tensile, compression, bending and shear workflows, and it keeps setup parameters, recorded data, calculations and reporting attached to the same test record.
The same software logic runs on both frame types we build, which matters for a laboratory that has an electromechanical bench for routine work and a servo-hydraulic floor frame for heavy sections. Methods, screens and reports stay familiar when the operator moves between stations.
Questions Worth Asking Any Supplier
Whether you buy from us or not, the same short list separates software that will serve a laboratory for a decade from software that will be tolerated.
- Which control modes are supported, and can a method change mode partway through a test.
- How is the method version recorded against a finished result.
- What happens to the raw data, and can a result be recalculated later without retesting.
- Can reports be exported in a form your quality system accepts, in both unit systems.
- What does the software do when the extensometer is removed partway through the run.
Send us your standard, the properties you have to report, the frames you already own and whether you work under an accredited scope, and we will come back with a configuration and a method structure rather than a feature list. Method structures and configurations are quoted through the quote request form, and the universal testing machines range shows which frames the software runs on.
