Description

Our Rock Core, Concrete and Universal Cutting Machine, designed for precision in preparing concrete, rock, or natural stone cores and test specimens, come in two distinct models. The inclusion of a special "V" block clamp assembly ensures secure specimen positioning during cutting operations.

The machines are supplied complete with a circulation water pump and cutting blade, while the special clamp assembly is available as a separate order. For those requiring a 220 V power supply, kindly specify at the time of order placement.

Rock, Concrete and Universal Cutting Machine NG-CoreTrim 450

Introducing the NG-CoreTrim 450 - Concrete, Rock, and Universal Cutting Machine: Engineered as a Universal Cutting solution, it precisely cuts hardened concrete, rock, and natural stone test specimens to the required sizes for testing. 450mm diameter blade with 175mm cutting depth and 420mm maximum cutting stroke.

Supplied with a special V Block clamp assembly and a water circulation pump, accompanied by a fixing arm designed for 100 mm diameter samples. Custom clamping fixtures can be ordered separately.

Please note, cutting blades need to be separately ordered. Streamline your cutting process with NG-CoreTrim 450 – the ultimate cutting masonry solution. CSA Certified.

Universal Cutting Machine NG-CoreTrim 450 Technical Specifications

NG-CoreTrim 450

Blade Diameter

450mm

Cutting Depth

175mm

Cutting Length

420mm

Engine Power

4HP – 220V 50/60Hz 3 Phase

Water Pump Power

0.37HP – 220V 50/60Hz 1 Phase

Weight

298lbs / 135kg

Dimensions

43.31" x 27.95" x 53.15" / 110 x 71 x 135 cm

Rock, Concrete and Universal Cutting Machine NG-CoreTrim 600

The NG-CoreTrim 600 - Concrete, Rock, and Universal Cutting Machine: Engineered as a Universal Cutting solution, it precisely cuts hardened concrete, rock, and natural stone test specimens to the required sizes for testing. 600mm diameter blade with 250mm cutting depth and 500mm maximum cutting stroke.

Supplied with a special V Block clamp assembly and a water circulation pump, accompanied by a fixing arm designed for 100 mm diameter samples. Custom clamping fixtures can be ordered separately.

Please note, cutting blades need to be separately ordered.



Request Quote

Related Products

West Cerchar Abrasivity Index Tester

West Cerchar Abrasivity Index Tester

Description The West Cerchar Abrasivity Index Tester is designed to determine the rock abrasivity index (CAI) for the purpose of quantifying the classification of rock materials abrasivity. This type of test is especially valuable in the mining industries, underground construction […]

Read more

Rock Shear Box Apparatus

Rock Shear Box Apparatus

This apparatus was originally developed at Imperial College, London, by Professor E. Hoek. It is a simple and practical method of determining the strength and slope stability of rock, both in the field and in the laboratory.

Read more

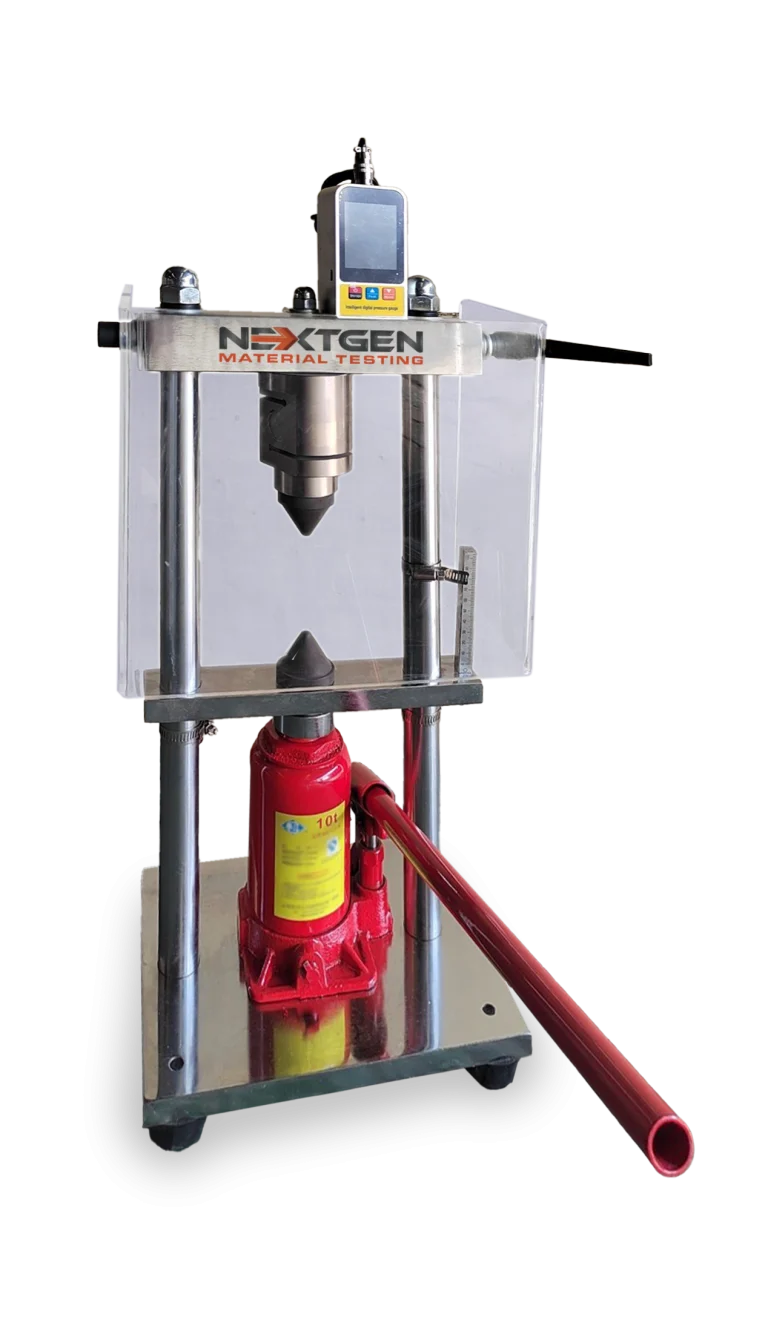

Rock Strength Index Apparatus
