Class H – Servo-Motor Dual Column Charpy Impact Tester – 300J, 450J, 600J or 750J

Trust
Class H - Servo-Motor Dual Column Charpy Impact Tester - 300J, 450J, 600J or 750J

Standards

Ultimate User-Friendliness
Ultimate User-Friendliness
Leading Dependability and Reliability
Leading Dependability and Reliability
NIST Certified Consumables
Strict Compliance with Industry Standards
Stocked Consumables and Spares
Stocked Consumables and Spares
Trusted After Sales Technical Support
Trusted After Sales Technical Support
Lifetime Product Support Advantage
Lifetime Product Support Advantage

Metals Impact Tester - Class H 750J - Dual Column Charpy Impact Tester

Impact Energy

300J, 450J, 600J or 750J

Description

The Class H Metals Impact Tester is a dual column impact testing system designed for Charpy Impact testing according to ASTM E23, ASTM E1820, ASTM E2298, ISO 148 and EN10045 industry standards. Class H is designed for high volume and especially hard materials. This unit has the highest accuracy and can be equipped with a force transducer for precise data sampling and complete measurement system. The Class H has a peak capacity of 750J with optional pendulums for 300J, 450J, 600J and 750J. Class Hcomes standard as a fully enclosed system and allows for impact testing at any pre-set angle.This system comes standard with an analog and digital readout for higher accuracy along with the option to add the ability to connectthe system to a computer for use with our analysis software. Class H-4 is an instrumented type meaning there is a force transducer inside the strikerwhich enables the determination of characteristic force, energy and displacement parameters such as pre-maximum force energy (Wm), the post maximum force energy, the general yield force (Fgy), the force at brittle fracture initiation (Fbf) and the arrest force (Fa). Lear more about Pendulum Impact Testers and Testing.

Main Features

  • The heavy cast iron base is mechanically designed to avoid any vibrations having an effect on impact testing results.
  • Dual column impact frame
  • Standard touch screen display and optional connectivity to a PC for software analysis
  • Motor-driven raising of the hammer with auto-return after completion of a test
  • Electromagnet locks the pendulum securely
  • Fully enclosed testing area for the highest safety while undergoing impact testing
  • The pendulum height and weight are precisely designed to ensure high accuracy
  • Simple and easy design to exchange the striking knife to meet ISO or ASTM standards
  • Designed with a high precision bearing for the most accurate impact results
  • Quality PLC controller for precision pendulum testing
  • Optional computer with software control is available for a semi-automatic operation. The operator must only change the specimens while the rest is controlled by the PC.
  • Optional instrumented version with force transducer within the pendulum for detailed software analysis - enables the user to determine the highest amount of data on their specimens

Technical Specifications

NG-Impact Class H
Model NG752 Class H and Class G
Maximum Impact Energy 750J
Optional Pendulum 300J, 450J, 600J and 750J
Angle Resolution 0.025°
Angle of Striking 30°-150° ±1° - Adjustable
Distance from Axis of Support to Center of Percussion 29.5"
750 mm
Velocity of Striker 5.24 m/s
Support Span 1.58"
40 mm
Radius of Curvature of Supports 1 mm
Angle of Taper of Supports 11° ± 1°
Radius of Striking Edge 2 mm (R2) and 8 mm (R8)
Angle of Striking Tip 30°
Thickness of Striking 0.63"
16 mm
Force Transducer 30kN, 50kN
A/D Sampling Resolution 16bits
Maximum Sampling Frequency 1.25MHz
Frequency Band Width 500kHz
Specimen Dimensions 2.16x0.4x0.4", 2.16x0.4x0.3", 2.16x0.4x0.2"
55x10x10 mm, 55x10x7.5 mm, 55x10x5mm

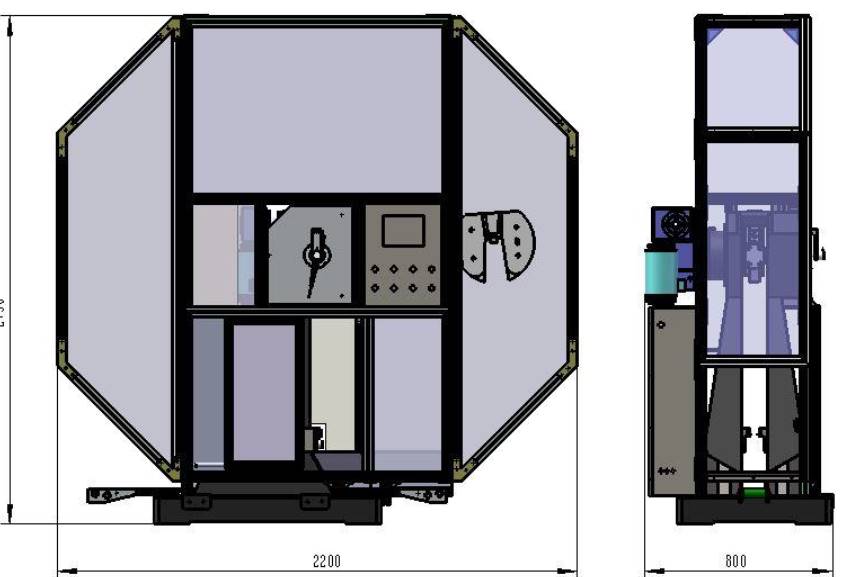

Overall Dimensions 7.72 x 2.7 x 7.88"
196 x 68 x 200 cm
Weight 1765lbs
800 kg
Power AC220V±10%, 50Hz, 100W

Charpy and Izod Impact Testing System 300J to 750J Load Capacity

Configurations

Name Description Model
Machine Frame NG752 Class H NG752 H-2 NG752 H-3 NG752 H-4
Framework Frame X X X
Pendulum Lock/Release System X X X
Driving System X X X
Angle Measurement X X X
PLC X X X
Dial Gauge Display X X X
Touch Screen X X X
Full Protection Shield X X X
Servo Motor   X X X
Software TestPilot   X X
Accessories Span Block
Specimen Centering Block
Centering Tongs
Standard Tools
Anchor Bolts
Wedge Block
X X X
PC Connection RS232   X X
Instrumented Impact System Force Transducer in Pendulum for quick plotting of the force-time graph
Access to more testing parameters on TestPilot software
    X
