Q: What are the main types of hot compression mounting resins? What colours are available and what are their uses?

Phenolic Resins (standard colors are black, red and green) – low cost and a variety of colours Acrylic Resins (clear) – excellent clarity Diallyl Phthalate Resins (blue and black) – provides a harder mounting support edge next to the specimen often used for coatings or heat treating sample analysis Epoxy Resins (glass-filled) – provides a harder mounting support edge next to the specimen often used for coatings or heat treating sample analysis Conductive Resins (phenolics with copper or graphite filler) – special resins can be made conductive for scanning electron microscopes SEM to prevent the specimen from building up a charge

Question 1

What Are the Standard Metallography Consumables Recommendations for a Polishing and Grinding Composite Materials?

Accepted Answer

Historically, there are two methods of polishing and grinding process for composite materials: Traditional Method: Grinding process &ndash; 320, 600, 800, and 1200 grits Polishing process &ndash; 6 um (polishing cloth), 3um (polishing cloth), 1um (polishing cloth) along with aluminum oxide powder or diamond suspension fluid Contemporary Method: Grinding process &ndash; 240 SIC paper Polishing process &ndash; 9um (diamond platen &ndash; Golden), 6um (polishing cloth), 1um (polishing cloth) with diamond suspension fluid Standard Engineering Recommendations: The below process offers a standard recommendation for polishing and grinding needs. This can be adjusted as needed, depending on your materials and surface finish requirements. Contact our qualified consultants to learn more. Here is a cost effective GRINDING: The most cost-effective consumables option for grinding would include a combination of our 12-inch MAGNEPAD Stainless Steel Magnetic Base Plate &ndash; Part #: SSMAG-P12 combined with the following adhesive backed grinding pads. Our recommendation based on your material and relatively smooth starting surface would be to start with: 240 Grit paper &ndash; Part #: SIC-240P12-100 600 Grit paper &ndash; Part #: SIC-600P12-100 1200 Grit paper &ndash; Part #: SIC-1200P12-100 You can always add more grinding paper grits as needed. NOTE: For optimal convenience, you would require one Steel Magnetic Base Plate per grinding paper. This combination will allow you to easily switch out your stainless steel magnetic base plates with grinding paper as needed; while benefiting from using the adhesive backed grinding paper, which is much more cost effective than magnetic grinding paper. POLISHING: After your grinding procedure, we would recommend using our 12-inch ATLANTIS Polishing Pad with Magnetic Rubber (Part #: ATL-3012-MAG) along with 1 micron DIAMAT Polycrystalline High Viscosity Diamond Abrasive (Part #: PC-1001-500). The pads can go directly onto the magnetic base plates of the main unit. They are extremely easy to switch out and have a high life-span. NOTE: Should better polishing be required, we would suggest moving into the alumina diamond suspensions. Should need additional guidance, contact us today to learn more.

Question 2

What makes an abrasive blade unique? What factors come into play when selecting a blade?

Accepted Answer

Abrasive blades are characterized by their abrasive type, bond type and hardness. The main factor when deciding which blade is right for you will be heavily dependant on your material hardness and whether it is a ferrous or a non ferrous metal.

Question 3

What are the two main types of abrasive sectioning blades?

Accepted Answer

Resin bonded blades and Resin-rubber bonded blades. Resin bonded have less smell, quicker wear, less sample burning and more versatile. Resin-rubber bonded blades certainly have a longer lifespan but will have a burnt rubber smell during the cutting process. They often burn a sample and are usually much more difficult in finding the best blade for the application.

Question 4

What blades can I use for my precision cutter?

Accepted Answer

Diamond wafering blades are the most common for precision sectioning, however, cubic boron nitride CBN blades are sometimes more efficient. Wafer cutting is often used for sectioning delicate samples or within a precise location.

Question 5

What are the main types of hot compression mounting resins? What colours are available and what are their uses?

Accepted Answer

Phenolic Resins (standard colors are black, red and green) &ndash; low cost and a variety of colours Acrylic Resins (clear) &ndash; excellent clarity Diallyl Phthalate Resins (blue and black) &ndash; provides a harder mounting support edge next to the specimen often used for coatings or heat treating sample analysis Epoxy Resins (glass-filled) &ndash; provides a harder mounting support edge next to the specimen often used for coatings or heat treating sample analysis Conductive Resins (phenolics with copper or graphite filler) &ndash; special resins can be made conductive for scanning electron microscopes SEM to prevent the specimen from building up a charge

Question 6

How do I determine which grits of metallographic abrasives and polishing pads/consumables to achieve the best finish for my specimen analysis?

Accepted Answer

The best way is to send NextGen your samples and have our metallographic experts work with your samples to working out the best consumables to achieve your desired finish. Contact a sales representative today to have your samples evaluated!

Question 7

The etchants indicate an expiry date of roughly 3 months. What happens if these consumables are use past the expiry date?

Accepted Answer

After the 3 months expiry date, the etchants may still produce the expected results, with no apparent effect on quality. This is especially true if the etchants are stored in a cool, dark and dry environment. The issue is that not all of them will last longer than 3 months. Some of them will degrade to the point of being unusable around 90 days or so. Because of this, all etchants have a 3-month shelf life. Occasionally we advise customers to continue using their etchant until they no longer get the results they need. In other cases where safety is tightly regulated, they may not have this option. Learn more by contacting our Quality Consultants today.

Question 8

What is Diamond grinding paper and when is it used?

Accepted Answer

At 8000 HV, mohs 10, diamond is acknowledged as the hardest material around. Its structure is of cubic crystal. It is available either as an artificial or natural product. While diamond is perfect for coarse grinding, its cost renders it an ineffective grinding material for everything except hard ceramics. For metallographic purposes, specifically as a rough polishing abrasive, polycrystalline diamond is ideal.

Question 9

What is Zirconia grinding paper and when is it used?

Accepted Answer

Zirconium silicate or Zircon is a not-so-commonly used coarse grinding abrasive. Because of its extreme toughness, it lasts longer. But, it isn&rsquo;t, in general, as hard or sharp as the more popular abrasives. It thus needs a higher pressure to be effective. Usually, the 120 or 60 grit sizes are considered the most useful for metallographic grinding applications with Zircon. The particle size for metallographic abrasives is classified typically by their grit size or the average particle size measured in microns. Grit size refers to the particle size if sized or classified with mesh screens. Grit size, in general, represents the number of wire mesh or wires per given area. Larger grit numbers thus represent more or smaller mesh screen openings, and mean smaller particle sizes. For instance, a 120 grit particle is around 105 microns in size, while a 1200 grit particle is 2.5 microns in size. The variance between the P-grading system used in Europe and the more prevalent CAMI or ANSI standard is mainly due to the European number being based on how many openings there are if the wire mesh width is not considered in the calculation. For larger particles, therefore, Europe&rsquo;s P-grading is about the same as the CAMI or ANSI number. For example, 120 grit is equivalent to P120 grit. For finer particles, on the other hand, you will see a much bigger value such as P4000 grit compared to 12000 grit.

Question 10

What are the primary types of polishing pads?

Accepted Answer

CERMESH Metal Mesh Cloth &ndash; The wire mesh material is coarse as well as intermediate lapping/polishing. The wire&rsquo;s texture allows the abrasive be semi-fixed. It therefore offers the edge of minimizing damage while increasing stock removal. POLYPAD Polishing Pad &ndash; The synthetic polyester polishing pad works similar to a nylon pad, except that the Polypad is a lot more durable. It is ideal for use in intermediate polishing tasks. TEXPAN Polishing Pad &ndash; The pad is the most frequently used cloth for intermediate polishing jobs. The polishing pad is non-woven. CHEM 2 Polishing Pad (Black) &ndash; The porometric polymer pad has the same consistency of a rubber type of pad. The CHEM 2 Black pad possesses a low nap, but acts as a polishing pad for intermediate applications. Its performance is somewhere between that of a low nap pad and a high nap pad. DACRON II Polishing Cloth &ndash; The low nap type of polishing pad is primarily used for polishing with a 1 &ndash; 15 micron diamond abrasive. It is the most frequently used intermediate polishing pad for metals in Europe. It has a high nap that allows the pad to provide a very gentle and soft polishing action. GOLDPAD Polishing Pad &ndash; A low-napped pad for intermediate polishing applications, it is mainly used with a 1 &ndash; 9 micron diamond. ATLANTIS Polishing Pad &ndash; A low napped woven pad for final applications, it has a foam backing that allows for better matting to the sample. It is a superior polishing pad used with 1 &ndash; 6 micron diamonds. NYPAD Polishing Pad &ndash; The low napped polishing pad made from silk is ideal for intermediate polishing applications. It is used mainly with diamond intermediate abrasives. MICROPAD Polishing Cloth &ndash; The most prevalent high nap pad used for final polishing of most polymers and metals, the nap offers a very gentle and soft polishing action. TRICOTE Polishing Pad &ndash; The tight high napped pad is ideal for final polishing of most metal materials. It is equipped with a tighter nap compared to the MICROPAD Polishing Pad. MOLTEC 2 Polishing Pad &ndash; The wool polishing cloth is ideal for final polishing use, and comes with an extremely high nap. It is typically used for the final polishing of metals where edge retention is not a big factor. NAPPAD Polishing Pad &ndash; Another high napped variety for final polishing, the pad is mostly used form most polymers and metals. Compared to the MICROPAD, the NAPPAD has a higher nap that provides an extremely gentle polishing action. It is quite useful for polishing softer materials like aluminum, copper, and austentite steels. FELTPAD Polishing Pad &ndash; The thick felt pad is mainly used for the final polishing of glass and other area parts with large surfaces.

Question 11

What are the benefits of metallographic polycrystalline diamond polisher use in the polishing cycle?

Accepted Answer

Very uniform surface finish High cutting rates More uniform distribution of particle size The self-sharpening abrasives offer high removal rates Tougher/harder particles Blocky shape Hexagonal microcrystallites that are similarly hard in any direction Very rough surface because of more cutting points A surface area 300 times more than monocrystalline diamonds Absence of abrasion-resistant directionality as the abrasion is independent of the orientation of the particle

Question 12

What is the ideal use for polycrystalline diamonds in the polishing cycle?

Accepted Answer

Polycrystalline diamond is most efficient when used for the initial application of several diamond beads/extenders for pad wetting. Notice that the pad saturation is not necessary. Neither is it recommended. Additional dispensing is typically dripped on the surface at 1 to 2 drops per 10 to 15 seconds, depending on the speed of polishing and the sample?s surface area. For the preparation of mineral and ceramic specimens, the recommendation is the alternate dispensing of diamond and colloidal silica (or SIAMAT colloidal silica). This results to a chemo-mechanical polishing (or CMP) action that considerably improves removal rates, lowers subsurface damage, and makes the surface finish better. The technique is ideal for use with 6 micron diamonds and other smaller polycrystalline diamonds. For best results for the application, it is recommended to clean the samples and the cloth during the cycle?s final 15 seconds. Allow running water to flow on the surface of the polishing pad.

Question 13

What is the ideal application of Monocrystalline Diamonds in the polishing cycle?

Accepted Answer

The best use of monocrystalline diamond is during the initial application of several diamond beads/extenders for the initial pad wetting. Notice that the pad saturation is neither recommended nor necessary. Additional dispensing is typically dripped on the surface at 1 to 2 drops for every 10 to 15 seconds, depending on the sample?s surface area and polishing speed. For ceramic and mineral specimen preparation, it is best that colloidal silica and diamond be dispensed alternately. This results to a chemo-mechanical polishing action that considerably improves removal rates, lessens subsurface damage, and enhances surface finish. The technique is ideal for use with 6 micron diamonds and other smaller polycrystalline diamonds. For best results for the application, it is recommended to clean the samples and the cloth during the cycle?s final 15 seconds. Allow running water to flow on the surface of the polishing pad.

Question 14

What are the common abrasive sectioning blade types?

Accepted Answer

Resin bonded blades &ndash; more versatile, higher wear, less sample burning, and less smell Resin-rubber bonded blades &ndash; tends to burn the sample, burnt rubber smell, longer life, and harder to find the appropriate blade

Question 15

When should you use abrasive blades?

Accepted Answer

The selection of the right abrasive blade to use depends on the cut-off machine&rsquo;s design, and to a large degree, the preference of the user. In general, abrasive blades are characterized by the type of abrasive, hardness, and bond type. Determining the right blade depends on the material or hardness of the metal, and whether the metal is ferrous or non-ferrous. In common practice, it usually comes down to blade life and odor. Resin/rubber blades tend to smell more since the rubber will slightly burn during the cutting process. But, this type of blade wears more slowly, and thus lasts longer. Resin blades, on the other hand, don&rsquo;t produce the smell of burnt rubber and are more versatile. However, the break down more easily. Resin blades likewise offer a slightly better cut. This is because the abrasive is continuously renewed, producing a cleaner cut in the process. It is also worth noting that the traditional, old-fashioned technology used to produce abrasive blades resulted to highly specialized resin/rubber blades. Thus, finding the right resin/rubber hardness, blade thickness, and abrasive size that matches the properties of the sample as well as the cutting machine parameters required lots of experimentation and testing. In the past, the resin/rubber blade was more common in the US. However, with the improvement of resins in recent years, the trend has seen a gradual shift towards resin bonded types of abrasives. In contrast, resin bonded blades have been more popular in the Asian and European markets for many years now.

Question 16

What&rsquo;s precision cutting, and when is it used?

Accepted Answer

Precision wafer cut is most often applied with a diamond wafering blade. For some materials, however, cubic boron nitride (or CBN) is the more appropriate and efficient watering blade to use. Optimal wafer cutting is also done by optimizing the abrasive size and concentration, and choosing the most suitable cutting load and speed. Precision wafer cutting is applied to section extremely delicate samples and to section samples to a quite precise location. Typically, precision wafering saws are equipped with micrometers to accurately align and position the samples. They also have variable cutting land loading speed control. The typical precision wafering saw ranges in speed from 50 to 1500 rpm or 300 to 3000 rpm. Faster saws are needed to section extremely hard materials like treated steals, minerals, and ceramics.

Question 17

When is wafering sectioning used in lieu of an abrasive sectioning blade?

Accepted Answer

A diamond wafering blade is often used for sectioning delicate materials that require a precise cut. When sectioning with a wafering blade, it is important to consider the load, speed, and diamond size and concentration. The applied load and cutting speed are functions of the material to be cut. Commonly, diamond wafering is performed at a speed of anywhere between 50 and 5000 rpm with varying loads from 10 to 1000 grams. In general, a harder specimen is cut at a higher speed and load (for instance, minerals and ceramics) as well as more brittle samples are cut at lower speeds and loads (such as electronic silicon substrates). A number of factors must be considered when choosing the right watering blade, including the diamond concentration (high and low), diamond size (medium or fine), diamond bond (metal plate), blade thickness, and diameter. Diamond concentration is crucial since it affects the applied load directly during cutting. For instance, brittle materials like ceramics need a higher effective load to section, unlike ductile materials like metals that need more cutting points. Thus, low concentration blades are better when sectioning hard brittle materials like ceramics. On the other hand, high concentration blades are preferred for ductile materials that contain a large portion of plastic or metal. The diamond bonding material likewise considerably affects the cutting performance of the blade. A metal plated wafering blade requires periodic dressing to keep it in top performance. Contrary to what many people think, the cutting performance doesn&rsquo;t diminish when the diamond is taken out of the blade. The metal bond, in reality, mainly smears over the diamond, and blinds the diamond abrasive. The smeared material is taken away and the cutting rate is restored with periodic dressing.

Question 18

What are the main categories of compression mounting compounds?

Accepted Answer

The different types of compression mounting resins include: Acrylic Resins (clear) Phenolic Resins (available in standard colors of red, green, and black) Epoxy Resins (glass-filled) Diallyl Phthalate Resins (black and blue) Conductive Resins (phenolics w/ graphite or copper filler)

Question 19

Explain the main differences among different types of compression mounting compounds.

Accepted Answer

Phenolics &ndash; Generally, phenolics are utilized because of their comparatively low cost. Phenolics are likewise available in various colors. Acrylics &ndash; The primary use of compression mounting acrylics is due to its excellent clarity. It is particularly important in locating specific features in the specimen mount. Epoxies/Diallyl Phthalates &ndash; Glass-filled epoxy and diallyl phthalate are types of compression mounting resins utilized for providing a tougher mounting support edge around the specimen. The resins are typically used as support for the coatings&rsquo; edges, heat treated samples, as well as other specimens that require better flatness. There&rsquo;s no apparent gap between the mounting material and the specimen. The glass-filled epoxies offer excellent support to the edge of the specimen even in extremely hard samples. Specialized Compression Mounting Resins &ndash; The addition of fillers like copper or graphite enables the compression mounting compounds to be more conductive. A conductive mount is used for scanning electron microscopes (SEM) to keep the specimen from accumulating a charge. A conductive mount is also used for samples that require electrolytic etching or polishing.

Question 20

What is a Silicone Carbide Grinding paper and when is it used?

Accepted Answer

SIC abrasive is manufactured using the high temperature produced in the reaction between carbon and silica. Its structure has a hexagonal-rhombohedral crystal shape. Its hardness is around 2500 HV. The abrasive is ideal for grinding and cutting because of its sharp edges and hardness. It likewise has enough brittleness. It easily cleaves to create new sharp edges (self-sharpens). SIC is superior in maximizing the cutting rates, while helping minimize subsurface and surface damage. In metallographic applications, it is used in abrasive blades as well as for coated abrasive grinding paper that range from the extremely coarse 60 grit to the extremely fine 1200 grit size. Coated or bonded SIC abrasive papers are specifically designed to give the abrasive a big number of cutting points. This is possible by proper alignment of the abrasive particles that are about normal to the backing. It must be noted that coated abrasives aren?t quite coplanar. SIC papers thus produce maximum efficiency (stock removal, cut rate, and minimal damage) since new abrasive gets exposed and the old abrasive is broken down.

Question 21

What is Alumina grinding paper and when is it used?

Accepted Answer

A naturally occurring material, Alumina comes in either the alpha (hard at 2000 HV, mohs 9) or the gamma (soft at mohs 9) phase. The Alumna abrasive is mainly used for final polishing due to its durability and hardness. Unlike SIC abrasive, alumna is easier to break down into colloidal or submicron particles. It is worth noting that bigger coated or bonded grit alumina sizes are available commercially. But, they are not recommended for metallurgic uses because they turn dull. This results to a lower cut rate and a higher subsurface and surface damage.

Question 22

Is there a detrimental affect to polishing on the vibromet in the colloidal silica for extended amounts of time?

Accepted Answer

It is common to polish for extended periods of time (hours) on the vibratory polisher. This is most common for very hard materials like engineered ceramics. The effect of over polishing on metals it that you can begin to introduce relief or edge rounding where the specimen meets the mounting compound. This can also happen if the specimen is comprised of various phases/materials of varying hardness. A good example is a PCB where you might have soft materials like tin or copper alongside harder materials like ceramic. The best practice is to play with times relative to your specimen and analysis. Checking the specimen on an optical microscope every 30 minutes is helpful when developing procedures for vibratory polishing. Also, keep in mind the colloidal silica will crystalize if allowed to dry out or dehydrate. I hope this is helpful.

Question 23

What is electrochemical etching in Metallography Etching and Cleaning?

Accepted Answer

Electroetching is a metal etching process that uses a solution of an electrolyte, an anode, and a cathode. The metal piece you want to etch is connected to the positive terminal of a source of direct electric current. To reduce unwanted electrochemical reactions, the anode and cathode should be of the same metal. The cation in the electrolyte should also be of the same metal as the metal in the battery. When the current source is turned on, the anode metal dissolves and turns into the same cation as in the electrolyte, and at the same time, an equal amount of the cation in the solution turns into metal and is deposited on the cathode. Depending on the voltage used and the electrolyte concentration at the anode and cathode, other, more complex electrochemical effects may occur, but the main ones are dissolution at the anode and deposition at the cathode where. To get a personal quote on Metallography Consumables, you can click here.

Question 24

What is chemical etching in Metallography Etching and Cleaning?

Accepted Answer

Chemical etching is a technique used to remove the material with a high-pressure, high-temperature chemical spray, creating a permanently etched image in metal. A resist is applied to the material&rsquo;s surface and is selectively removed, revealing the underlying metal. This process is then repeated to create the desired image. An etching machine uses a corrosive reaction between a chemical and a material to create an image. The machine is then heated and sprayed at high pressure to amplify the effect. The chemical spray dissolves the unprotected metal areas, etching the material atom by atom for a smooth, burr-free finish. Almost any metal and metal alloy can be chemically etched. This includes steel and stainless steel, nickel, copper and aluminum. Most metals are etched using a ferric chloride etchant which is safe to use and can be recycled. Ferric chloride can be recycled and reused. Other types of proprietary etchants, such as nitric acid, are used for specific types of metals and alloys. Click here to obtain a personal quote on Metallography Consumables or if you have any other questions.

Question 25

Do Diamond Cutting Blades Wear out?

Accepted Answer

Unfortunately, not all Diamond Blades last forever. If you know when your Diamond Blade is starting to wear down, it will slowly start to lose its effectiveness. The results of using a worn diamond blade are hard to see, but if you compare a brand new blade to a week-old blade that has been used, you will definitely notice the difference. If you learn to notice when it wears out, then you will save time, and your work will become more efficient. Nevertheless, a diamond blade is not blunt or have dull edges like a Jigsaw Blade or Sabre saw blade. This means you can&rsquo;t just replace it when you notice it&rsquo;s dull. You have to pay attention to the type of blade cut and if it is different from the first time you use it. Your diamond blade will likely need to be replaced even if it still cuts. A fast, clean cut is always better than a slow, dull one. Click here to obtain a quote or if you have any more questions.

Question 26

Why is the grinding and polishing step necessary in metallographic preparation?

Accepted Answer

Preparation of material for microscopic examination is the most common method used for mechanical specimens. The surface preparation necessary for a specific analysis or examination is determined by the type of analysis or examination being performed. The process of preparing mechanical specimens involves removing the material on their surface until the desired result is achieved. This can be done with progressively finer particles until the desired surface finish is reached. Proper grinding removes damaged or deformed surface material while limiting additional surface deformation. The goal is to produce a polished surface with minimal damage that can be easily removed during polishing. Grinding removes material using a fixed abrasive particle that produces small chips of the specimen material. The process of making small chips with a sharp abrasive grain produces the lowest amount of deformation in the specimen while providing the highest removal rate. Click here to obtain a personal quote on Metallography Consumables from NextGen.

Question 27

What is Diamond Suspension, and what is it used for?

Accepted Answer

Diamond suspensions are used in the sample preparation stage to quickly remove raw materials and produce perfectly polished surfaces for analysis. The type of diamond suspension to use depends on the material being polished and the desired surface finish. Monocrystalline diamond suspensions are generally good performers, but in some cases, Polycrystalline diamond suspensions will be required. Polycrystalline diamond is particularly effective at removing stock and polish from hard or sintered materials. Glycol Based Suspensions: A water-soluble and environmentally friendly diamond suspension mixed with glycol lubricant. Ideal for manual application or automatic &ndash;drip&rdquo; dispensing systems. Colour-coded for easy identification of micron size. Water Based Suspensions: Water soluble and environmentally friendly, this 99% water-based formula is recommended for manual application or automatic &ndash;&rdquo;spray&rdquo;/&rdquo;drip&rdquo; dispensing systems, where the lubricant is also applied. DiaLube Diamond Suspensions: Water soluble and environmentally friendly diamond suspension pre-mixed with a propylene glycol-based polishing lubricant. Excellent for quick application of both abrasive and lubricant without the need for precise dripping ratios. Alcohol-Based Slurries: An alcohol-based slurry made with 100% polycrystalline diamond, recommended for water-sensitive materials such as zinc, magnesium, and steel with non-metallic inclusions. Use with alcohol-based lubricants only. Recommended for manual application or automatic &ndash;spray&rdquo;/&ndash;drip&rdquo; dispensing systems, where the lubricant is also applied. If you would like to obtain a personal quote on Diamond Abrasive Suspension and other Metallography Consumables, please click here.

Question 28

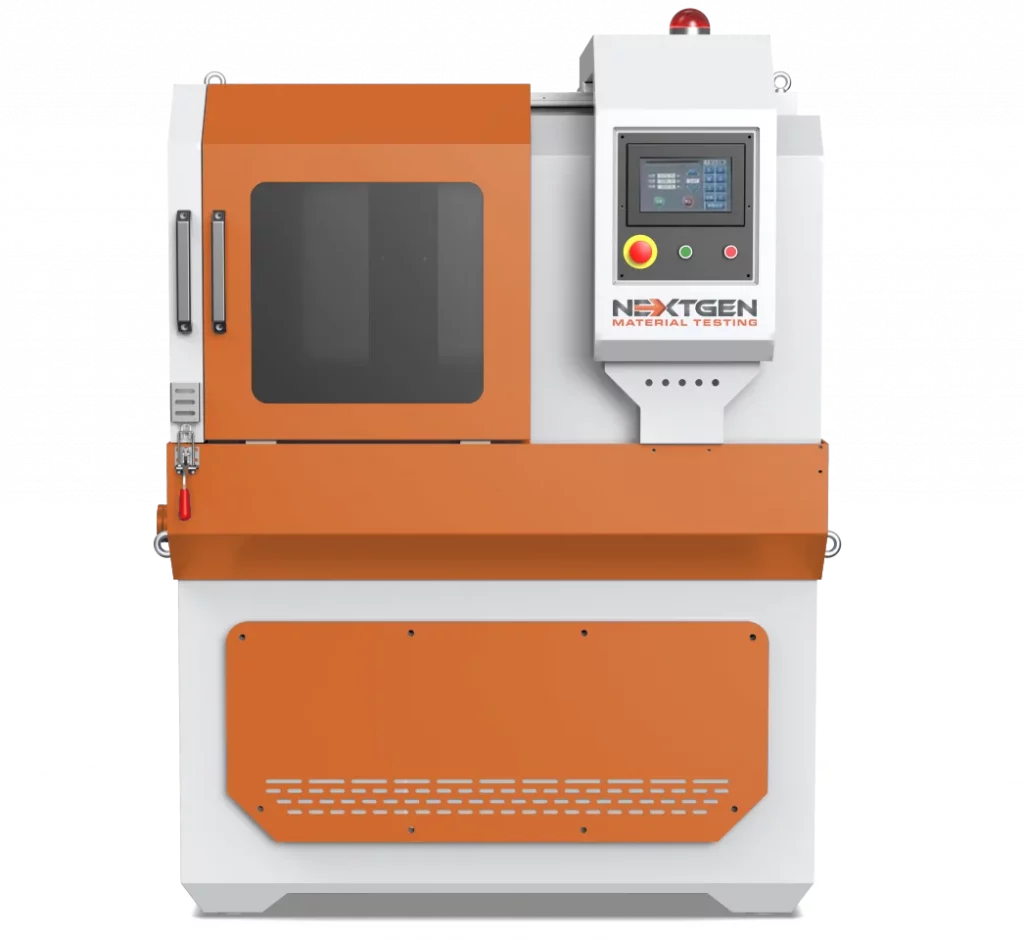

What type of Equipment is the GenCut GL 170XY &ndash; Abrasive Cut Off Saw?

Accepted Answer

The GenCut GL 170XY is classified as Metallography Sample Preparation Equipment, specifically within the category of Abrasive Metallographic Cutting Equipment. This tool plays a crucial role in preparing metal samples for detailed analysis. It&rsquo;s designed to handle a variety of materials, especially metals, facilitating precise and controlled cuts. This precision is vital in metallography, the study of metal structures and components, where clean and accurate sections of samples are essential. The abrasive cutting method employed by the GenCut GL 170XY ensures the integrity of the samples is maintained during the preparation process. It allows for the examination of the microstructure of metals, which is key in understanding their properties and behaviors. The GenCut GL 170XY is a vital tool in laboratories and research facilities. It supports a range of studies and applications, from basic material characterization to advanced research in material science, metallurgy, and engineering. Its design and features, including the automated XY table and the advanced cooling system, make it a reliable and efficient choice for sample preparation. Click here to learn more about the product or here to receive a personalized quote.

Question 29

What are the cutting capacity and table features of the GenCut GL 170XY &ndash; Abrasive Cut Off Saw?

Accepted Answer

The GenCut GL 170XY &ndash; Abrasive Cut Off Saw stands out with its substantial cutting capacity, capable of handling samples up to 170mm in diameter. This large cutting diameter is crucial for accommodating a wide range of metallographic samples, making it versatile for various applications. In addition to its impressive cutting capacity, the saw is equipped with a fully automated XY table. This feature significantly enhances the precision of the cutting process. The automation allows for meticulous positioning and movement of the sample, ensuring consistent and accurate cuts. This level of control is essential for preparing samples where precise dimensions and smooth cuts are necessary. Furthermore, the integration of the automated XY table not only improves the accuracy but also the efficiency of the cutting process. It streamlines the sample preparation workflow, making it easier and quicker to prepare multiple samples with consistent quality. This efficiency is particularly beneficial in busy laboratories where time and accuracy are of the essence. Overall, the combination of a large cutting capacity and an advanced automated table makes the GenCut GL 170XY a highly capable and reliable tool in the field of metallography. Its design caters to the needs of professionals who require both precision and versatility in sample preparation. Click here to learn more about the product or here to receive a personalized quote.

Question 30

What are the key safety and efficiency features of the GenCut GL 170XY &ndash; Abrasive Cut Off Saw?

Accepted Answer

The GenCut GL 170XY &ndash; Abrasive Cut Off Saw is designed with advanced safety and efficiency features. A notable aspect is its double hood, fully enclosed structure, which significantly enhances operational safety. This enclosure safeguards the user from potential hazards like debris and sparks during cutting, while also mitigating noise and dust. Efficiency is boosted by the saw&rsquo;s quick clamping mechanisms. These mechanisms allow for rapid and secure mounting of samples, streamlining the setup process. The quick clamping ensures that samples are firmly held, a critical factor for achieving precise and accurate cuts. These features, the protective double hood and efficient clamping system, collectively establish the GenCut GL 170XY as a leading tool in its class. They are crucial for maintaining a safe work environment and ensuring high-quality, efficient sample preparation in metallography labs and similar settings. Click here to learn more about the product or here to receive a personalized quote.

Question 31

How does the cooling system of the GenCut GL 170XY &ndash; Abrasive Cut Off Saw enhance the cutting process and specimen quality?

Accepted Answer

The GenCut GL 170XY &ndash; Abrasive Cut Off Saw features a robust cooling system, equipped with two coolant lines, designed to prevent overheating of the specimen during the cutting process. This powerful cooling system plays a critical role in maintaining the integrity of the specimen. By keeping the temperature controlled, it prevents the specimen from getting too hot, thus avoiding deformities or burn residues. Additionally, this cooling mechanism contributes significantly to the overall cutting quality. It ensures that cuts are clean and precise, which is essential for accurate metallographic analysis. Moreover, the efficient cooling also positively impacts the longevity of the cutting equipment. It increases the utilization rate of the cutting wheel and extends the life of the blades, making the GenCut GL 170XY more cost-effective and reliable for prolonged use. This combination of specimen quality preservation and enhanced equipment durability underscores the saw&rsquo;s value in providing high-quality, efficient cutting solutions. Click here to learn more about the product or here to receive a personalized quote.

Question 32

What are the specific dimensions of the cutting wheel that is used in the GenCut GL 170XY &ndash; Abrasive Cut Off Saw?

Accepted Answer

The cutting wheel of the GenCut GL 170XY &ndash; Abrasive Cut Off Saw is meticulously designed to ensure optimal performance. It measures &Phi;450&times;3.5mm&times;&Phi;32mm. The 450mm diameter provides a broad cutting area, enabling the saw to handle a variety of sample sizes and types effectively. This size is particularly beneficial for processing larger or irregularly shaped samples, offering versatility in cutting applications. The thickness of the wheel, at 3.5mm, is chosen to balance cutting efficiency and durability. It allows for precise, clean cuts while maintaining the structural integrity of the wheel through extended use. Additionally, the 32mm center hole is standardized to fit the saw perfectly. This ensures a stable and secure attachment, which is critical for accurate and consistent cutting performance. These dimensions and characteristics of the cutting wheel are integral to the GenCut GL 170XY&rsquo;s ability to deliver precise, efficient, and reliable cuts, making it a valuable tool in metallographic sample preparation. Click here to learn more about the product or here to receive a personalized quote.

Question 33

What is the maximum cutting section capacity of the GenCut GL 170XY &ndash; Abrasive Cut Off Saw?

Accepted Answer

The maximum cutting section capacity of &Phi;170mm in the GenCut GL 170XY &ndash; Abrasive Cut Off Saw is a defining feature that significantly enhances its functionality and versatility. This large diameter capacity allows the saw to accommodate a wide range of specimen sizes, making it a versatile tool for various metallographic analyses. It caters to the needs of laboratories and industrial settings where samples of varying sizes and materials need precise cutting. This 170mm capacity is particularly important for handling larger or more complex specimens that require detailed examination. The ability to cut larger sections means that the saw can be used for a broader spectrum of materials, from standard metal samples to larger industrial components. This adaptability is crucial in environments where time and precision are critical, as it allows for efficient processing of multiple samples without the need for changing tools. Furthermore, this capacity ensures that the cuts are not only large but also precise. The design of the GenCut GL 170XY, in conjunction with its cutting capacity, guarantees that each cut is clean and accurate, which is essential for the subsequent analysis of the material&rsquo;s microstructure. The precision of these cuts contributes to the reliability of the analyses and the quality of the results. Click here to learn more about the product or here to receive a personalized quote.

Question 34

GenCut GL 170XY &ndash; Multi Function Abrasive Cut Off Saw with Touch Screen User Friendly Interface and Large Cutting Capacity &ndash; &Phi;170mm

Accepted Answer

The GenCut GL 170XY &ndash; Abrasive Cut Off Saw is equipped with a cutting table sized 600 x 800 mm, a feature that significantly enhances its functionality. This large table size is crucial for multiple reasons: Accommodation of Various Sample Sizes: The ample space provided by the 600 x 800 mm table allows for the handling of a wide range of sample sizes. This versatility is essential in metallographic analysis, where samples may vary greatly in size and shape. Efficiency in Sample Processing: The spacious table enables users to work with multiple samples concurrently or manage larger specimens more effectively. This capability increases throughput, especially in high-volume settings, saving time and improving workflow. Precision and Control: The generous table size affords better control and precision in positioning and cutting samples. This precision is vital for ensuring accurate cuts, which directly impacts the quality of metallographic analysis. User Convenience: A larger table size provides users with more room to maneuver, enhancing comfort and reducing the likelihood of errors during the sample preparation process. The dimensions of the cutting table in the GenCut GL 170XY play a pivotal role in its efficiency, versatility, and precision, making it an invaluable tool in various metallographic applications. Click here to learn more about the product or here to receive a personalized quote.

Question 35

What is the significance of the 290 mm Z-axis (cutting blade spindle drop distance) in the GenCut GL 170XY &ndash; Abrasive Cut Off Saw?

Accepted Answer

The 290 mm Z-axis, or cutting blade spindle drop distance, in the GenCut GL 170XY is a key feature that greatly influences its performance. This measurement indicates the maximum distance the cutting blade can move downwards, impacting the saw in several ways: Versatility in Cutting Depth: The 290 mm drop distance allows for a wide range of cutting depths, accommodating different thicknesses of samples. This adaptability is essential for precision in metallographic sample preparation, where varying sample sizes are common. Enhanced Precision and Control: Such a significant drop distance offers greater control over the cutting process. Operators can adjust the blade&rsquo;s position with precision, ensuring accurate and clean cuts, which are vital for detailed analysis of the sample&rsquo;s composition and structure. Improved Safety: The ability to control the blade&rsquo;s movement to this extent also enhances safety. Operators can precisely manage the blade&rsquo;s interaction with the sample, reducing the risk of accidents. Operational Efficiency: The 290 mm Z-axis contributes to operational efficiency. It allows for quick adjustments for different sample sizes, streamlining the cutting process and saving time, especially when dealing with a variety of sample types. Click here to learn more about the product or here to receive a personalized quote.

Question 36

What is the significance of the 750 mm Y-axis movement stroke in the GenCut GL 170XY &ndash; Abrasive Cut Off Saw?

Accepted Answer

The 750 mm Y-axis movement stroke in the GenCut GL 170XY &ndash; Abrasive Cut Off Saw plays a significant role in its operational capabilities. This feature, defining the extent to which the cutting blade can move laterally, allows for greater flexibility in handling a variety of sample sizes and shapes. This large range of motion is particularly beneficial for cutting larger or irregularly shaped specimens, providing the versatility needed in diverse metallographic applications. Additionally, the extensive Y-axis stroke enables precise adjustments in positioning the sample for cutting. This precision is crucial for achieving accurate cuts, a key requirement in metallographic analysis where the quality of the cut can impact the integrity of the sample&rsquo;s analysis. The 750 mm stroke thus not only broadens the range of samples that the GenCut GL 170XY can accommodate but also ensures that these samples are cut with the utmost accuracy and efficiency. This feature makes the saw a valuable tool in settings where versatility and precision are paramount in sample preparation. Click here to learn more about the product or here to receive a personalized quote.

Question 37

What is the size of the X-axis travel in the GenCut GL 170XY &ndash; Abrasive Cut Off Saw?

Accepted Answer

The X-axis travel in the GenCut GL 170XY &ndash; Abrasive Cut Off Saw measures 150 mm. This specific measurement of the X-axis travel is crucial for the saw&rsquo;s functionality. It dictates the horizontal movement capability of the cutting blade, which is essential for precise positioning and alignment of the specimen during the cutting process. The 150 mm travel size, while compact, provides enough range to accommodate a variety of sample sizes and shapes, ensuring versatility in sample preparation. Additionally, this travel size on the X-axis is instrumental in achieving precise and accurate cuts, a necessity for detailed and accurate metallographic analyses. The ability to make fine adjustments in the horizontal plane allows for greater control over the cutting process, ensuring high-quality results. Thus, the 150 mm X-axis travel is a key feature that enhances the precision, versatility, and overall performance of the GenCut GL 170XY. Click here to learn more about the product or here to receive a personalized quote.

Question 38

What is the range of the cutting feed speed in the GenCut GL 170XY &ndash; Abrasive Cut Off Saw?

Accepted Answer

The GenCut GL 170XY &ndash; Abrasive Cut Off Saw offers a cutting feed speed range from 1 to 200 mm/min. This broad range enables considerable flexibility and precision in the cutting process. At the lower end of the spectrum, the slow speed of 1 mm/min is ideal for delicate or highly precise cuts, where maintaining the integrity of the sample is crucial. On the other hand, the upper limit of 200 mm/min allows for faster cuts, which is beneficial when dealing with less sensitive materials or when time efficiency is a key consideration. This variability in feed speed is essential for tailoring the cutting process to different types of materials and requirements. It ensures that each sample is cut under optimal conditions, thereby enhancing the quality of the cuts and, consequently, the accuracy of subsequent analyses. Such flexibility makes the GenCut GL 170XY a versatile tool in various metallographic sample preparation scenarios, capable of adapting to a wide range of cutting needs. Click here to learn more about the product or here to receive a personalized quote.

Question 39

What is the water tank capacity of the GenCut GL 170XY &ndash; Abrasive Cut Off Saw?

Accepted Answer

The GenCut GL 170XY &ndash; Abrasive Cut Off Saw is designed with a water tank that can hold up to 150 liters. This substantial capacity plays a crucial role in the saw&rsquo;s operation. Firstly, the large volume of coolant available significantly reduces the risk of overheating during extended cutting sessions. Overheating can be detrimental to both the specimen&rsquo;s integrity and the saw&rsquo;s blade life. Thus, the 150-liter tank is essential for maintaining optimal operating temperatures. Additionally, this capacity is beneficial in high-demand environments. The larger the tank, the less frequently it needs to be refilled, which translates to fewer interruptions and more continuous operation. This is particularly advantageous in laboratory or industrial settings where the saw is in constant use, as it enhances overall productivity and efficiency. Furthermore, consistent cooling provided by this tank capacity ensures the quality of cuts remains high. Accurate and precise cuts are vital in metallographic analyses, and proper cooling is key to achieving this. In conclusion, the 150-liter water tank is a vital component of the GenCut GL 170XY, contributing significantly to its efficiency, reliability, and the quality of its output in various sample preparation tasks. Click here to learn more about the product or here to receive a personalized quote.

Question 40

What is the power specification of the GenCut GL 170XY &ndash; Abrasive Cut Off Saw?

Accepted Answer

The power specification for the GenCut GL 170XY &ndash; Abrasive Cut Off Saw is 480V, 60Hz, 3Phase. This specification is crucial for understanding the saw&rsquo;s operational requirements and capabilities. The 480V indicates a high voltage requirement, signifying the saw&rsquo;s powerful performance capacity, suitable for demanding cutting tasks. The 60Hz frequency aligns with the standard electrical systems in many countries, ensuring compatibility and ease of integration into existing industrial setups. Furthermore, the three-phase electrical supply is a key aspect of its design. Three-phase power is known for its efficiency and stability, especially important for heavy-duty equipment like the GenCut GL 170XY. It provides a consistent power supply, which is essential for maintaining uninterrupted and smooth operation. This type of power supply is less likely to experience fluctuations, thus safeguarding the saw against potential electrical issues that could affect its performance or longevity. The 480V, 60Hz, 3Phase power specification of the GenCut GL 170XY not only ensures that it can handle intensive metallographic cutting tasks but also underlines the saw&rsquo;s compatibility with industrial power systems, contributing to its reliability and effectiveness in professional settings. Click here to learn more about the product or here to receive a personalized quote.

Question 41

What is the control system of the GenCut GL 170XY &ndash; Abrasive Cut Off Saw?

Accepted Answer

The GenCut GL 170XY &ndash; Abrasive Cut Off Saw is equipped with an advanced control system comprising a 7-inch color touchscreen panel and a Programmable Logic Controller (PLC). This dual-component system enhances the saw&rsquo;s usability and precision. The touchscreen panel serves as an interactive interface, displaying vital cutting data in real time. It simplifies the operation by allowing users to easily access and modify settings, facilitating a more efficient and user-friendly experience. On the other hand, the PLC controller is the core of the machine&rsquo;s automation. It reliably manages the saw&rsquo;s functions, orchestrating the cutting processes with high accuracy. This controller is instrumental in ensuring consistent performance, especially in complex cutting operations. Its programmability means it can be tailored to suit various cutting requirements, enhancing the saw&rsquo;s versatility across different applications. Together, these elements form a control system that is both sophisticated and intuitive, making the GenCut GL 170XY &ndash; Abrasive Cut Off Saw a highly capable tool for precision cutting in metallography and other relevant fields. Click here to learn more about the product or here to receive a personalized quote.

Question 42

What are the cutting modes of the GenCut GL 170XY &ndash; Abrasive Cut Off Saw?

Accepted Answer

In order to meet the cutting needs of various types of materials and a variety of cutting requirements, the GenCut GL 170XY &ndash; Abrasive Cut Off Saw offers three distinct cutting modes. Among these modes are Flat Push Cutting, Intermittent Cutting, and Reciprocating Cutting. Flat Push Cutting is suitable for straightforward, continuous cuts, providing efficiency and precision. Intermittent Cutting, on the other hand, involves periodic cutting actions, which helps in managing heat buildup and is particularly useful for materials that are sensitive to heat or prone to deformation. This mode ensures the integrity of the specimen is maintained throughout the cutting process. Depending on the material&rsquo;s properties and the specific requirements of the task, each mode is designed to optimize the cutting performance in accordance with the material&rsquo;s properties to demonstrate the versatility and adaptability of the saw to different cutting scenarios. Click here to learn more about the product or here to receive a personalized quote.

Question 43

What is the role of the automatic water cooling system in the GenCut GL 170XY abrasive cut-off saw?

Accepted Answer

The GenCut GL 170XY abrasive cut-off saw incorporates an automatic water cooling system with dual coolant lines, playing a crucial role in the cutting process. This system is designed to effectively manage heat generation during cutting operations. By doing so, it prevents overheating of the specimen, a critical aspect in maintaining its structural integrity. Overheating can lead to deformation or the formation of burn residues, which can compromise the quality of the sample and the accuracy of the cut. Moreover, the cooling system extends the lifespan and efficiency of both the cutting wheel and blades. By keeping these components cool, it reduces wear and tear, thereby enhancing their durability and performance. This results in more consistent and precise cuts over time, ensuring the reliability of the cutting process. Additionally, the cooling system contributes to the overall efficiency of the cutting operation, enabling the saw to handle a variety of materials without compromising on quality. Its integration into the GenCut GL 170XY demonstrates a commitment to precision, durability, and efficient operation in sample preparation tasks. Click here to learn more about the product or here to receive a personalized quote.

Question 44

What are the benefits of the vertical cutting design in the GenCut GL 170XY abrasive cut-off saw?

Accepted Answer

The vertical cutting design of the GenCut GL 170XY abrasive cut-off saw offers several key advantages that make it highly effective for precision sample preparation. Firstly, this design allows for better control and stability during the cutting process. By cutting vertically, the force is applied uniformly across the sample, resulting in cleaner, more accurate cuts. This is particularly beneficial when working with delicate or irregularly shaped specimens, where precision is paramount. Additionally, the vertical orientation minimizes the use of space, making the saw suitable for laboratories or facilities with limited workspace. It also enhances safety, as the cutting action is more contained compared to horizontal systems. This vertical approach reduces the risk of debris scattering, which is crucial for maintaining a clean and safe working environment. Moreover, the vertical cutting mechanism allows for easier alignment and positioning of the sample. This is especially useful when dealing with multiple samples or complex cutting requirements, as it simplifies the process and ensures consistency across different cuts. The GenCut GL 170XY&rsquo;s vertical cutting design, therefore, combines precision, safety, and efficiency, making it an ideal choice for various metallographic sample preparation needs. Click here to learn more about the product or here to receive a personalized quote.

Question 45

How does the PLC-controlled automatic system of the GenCut GL170XY enhance its metallographic sample cutting capabilities?

Accepted Answer

The PLC-controlled automatic system of the GenCut GL170XY plays a pivotal role in enhancing its metallographic sample cutting capabilities. The integration of a Programmable Logic Controller (PLC) allows for precise and automated control over the cutting process, particularly in the X, Y, and Z directions. This level of control is crucial for ensuring accuracy in cuts, which is essential for metallographic analysis where the integrity of the sample is of utmost importance. Furthermore, the PLC system enables automated adjustments based on the material being cut. This intelligent cutting feature adjusts the feed amount to match the hardness of the material, ensuring optimal cutting conditions for each sample. This not only improves the quality of the cuts but also reduces the potential for damage to the samples and wear on the cutting equipment. The ability to automate these processes increases efficiency and repeatability, making the GenCut GL170XY suitable for high-volume or precision-demanding environments. This level of automation minimizes the need for constant operator intervention, allowing for more streamlined and consistent operations. Overall, the PLC-controlled automatic system of the GenCut GL170XY represents a significant advancement in metallographic sample preparation, offering enhanced precision, adaptability, and efficiency. Click here to learn more about the product or here to receive a personalized quote.

Question 46

How does the frequency conversion control of the cutting speed contribute to the performance of the GenCut GL170XY?

Accepted Answer

The frequency conversion control of the cutting speed in the GenCut GL170XY is a key feature that significantly contributes to its overall performance and reliability. This advanced technology allows for precise and variable control over the speed of the cutting wheel, which is essential for adapting to different types of materials and cutting requirements. By being able to adjust the speed, operators can fine-tune the cutting process to match the specific characteristics of each sample, such as its hardness, size, and desired finish. The use of frequency conversion for speed control also leads to greater consistency in cuts. This consistency is vital for ensuring that each sample is prepared accurately, maintaining the integrity and quality needed for detailed metallographic analysis. Moreover, precise speed control helps in extending the life of the cutting blades and wheels. By optimizing the speed for each cutting operation, the wear and tear on these components are reduced, leading to lower maintenance costs and longer intervals between replacements. Click here to learn more about the product or here to receive a personalized quote.

Question 47

What are the components of the standard configuration of the GenCut GL 170XY?

Accepted Answer

The standard configuration of the GenCut GL 170XY abrasive cut-off saw includes several key components, each playing an integral role in its operation: GenCut GL 120XY Cutting Saw: This is the primary cutting tool within the system, designed for precision and efficiency in slicing through various materials for metallographic analysis. Coolant Chamber: This chamber houses the cooling system, which is vital for managing the heat generated during cutting operations, thereby protecting the sample integrity and extending the life of the cutting wheel. Wrench Set (62mm, 17-19mm, 46mm): These tools are essential for routine maintenance and adjustments of the saw, ensuring that it remains in optimal working condition. Water Inlet Tube and Drain Pipe: These components are part of the cooling system, with the inlet tube supplying coolant to the cutting area and the drain pipe removing used coolant, thereby maintaining a clean and efficient cutting environment. Diamond Cutting Wheel (&Phi;500 x 4 x &Phi;32mm): This high-quality cutting wheel is designed for precision and durability, capable of handling a wide range of materials with minimal wear. Water Tank and Pump: These components supply and circulate the coolant throughout the cutting system, playing a critical role in temperature management and debris removal during the cutting process. Operation Manual: This provides comprehensive instructions on the usage, maintenance, and safety procedures for the GenCut GL 170XY, ensuring users can operate the equipment effectively and safely. Click here to learn more about the product or here to receive a personalized quote.

Question 48

How does the ability to switch between electronic hand wheel control and automatic control enhance the flexibility of the GenCut GL170XY?

Accepted Answer

The GenCut GL170XY&rsquo;s feature of allowing operators to switch between electronic hand-wheel control and automatic control significantly enhances its operational flexibility. This dual-mode capability caters to a wide range of cutting requirements and user preferences, making the saw adaptable to various sample preparation scenarios. The electronic hand-wheel control mode offers the advantage of manual precision. It allows operators to make fine adjustments and direct control over the cutting process, which is particularly useful for delicate or intricate cuts. This mode is ideal for applications where the feel and intuition of the operator play a crucial role in achieving the desired outcome. On the other hand, the automatic control mode is designed for efficiency and consistency in repetitive or standard cutting operations. In this mode, the saw operates based on pre-set parameters, ensuring uniformity and precision across multiple cuts. This is especially beneficial in high-throughput environments or when working with standardized samples. The seamless transition between these two modes means that operators can choose the most appropriate method for their current task, combining the benefits of both manual dexterity and automated precision. This flexibility not only makes the GenCut GL170XY versatile but also ensures that it can meet a broad spectrum of metallographic cutting needs with ease. Click here to learn more about the product or here to receive a personalized quote.

Question 49

What is the impact of the touch screen interface on the user experience of the GenCut GL170XY?

Accepted Answer

The touch screen interface of the GenCut GL170XY greatly impacts and enhances the user experience, primarily by providing convenient access to various cutting data. This modern interface elevates the ease of use of the machine, allowing operators to interact with the saw more intuitively and efficiently. One significant advantage is the real-time display of cutting data. Users can monitor key parameters such as cutting speed, position, and progress directly from the screen, ensuring that they are always informed about the operation&rsquo;s status. This immediate access to data allows for quick adjustments and more precise control over the cutting process. Moreover, the touch screen interface simplifies the operation of the machine. With its user-friendly design, operators can easily navigate through different functions, settings, and controls. This accessibility is particularly beneficial for users who may not have extensive technical knowledge, making the saw more approachable and easier to operate. Additionally, the interface likely includes features such as saved cutting profiles, which streamline the process for repetitive or standardized tasks. By allowing users to save and quickly access preferred settings, the machine can increase productivity and reduce setup time. Click here to learn more about the product or here to receive a personalized quote.

Question 50

How does the mechanical and electrical separation design in the GenCut GL170XY contribute to its maintenance and safety?

Accepted Answer

The mechanical and electrical separation design of the GenCut GL170XY is a critical feature that significantly contributes to both the ease of maintenance and the safety of the equipment. By distinctly separating the mechanical components, such as the cutting room, from the electrical parts, including the spindle motor, the saw achieves several important benefits. Firstly, this separation facilitates easier and more efficient cleaning of the cutting room. Since the cutting process often involves the production of metal filings, debris, and coolant splashes, the ability to clean the mechanical area without risking damage to the electrical components is crucial. This not only ensures the longevity and proper functioning of the saw but also maintains a safe and clean working environment. Moreover, the separation enhances the safety of the spindle motor, a key component of the saw. By isolating it from the mechanical cutting area, the risk of contamination or damage from debris and fluids is greatly reduced. This protective measure ensures the motor&rsquo;s longevity and reliability, which is vital for consistent performance and reducing the likelihood of equipment failure. Click here to learn more about the product or here to receive a personalized quote.

Question 51

What is the significance of the cutting room security cover with a large observation window on the GenCut GL170XY?

Accepted Answer

The cutting room security cover, equipped with a large observation window on the GenCut GL170XY, plays a significant role in enhancing both safety and usability. This design feature adds a crucial layer of security while also allowing users to conveniently monitor the entire sample cutting process. The primary function of the security cover is to ensure safety during operation. It acts as a barrier, protecting the user from potential hazards such as flying debris, sparks, and excessive noise. By containing these within the cutting room, the saw ensures a safer working environment. This is especially important in settings where operators are handling multiple tasks and need assurance of safe operation. The large observation window integrated into the security cover is particularly beneficial. It allows users to have a clear view of the sample and the cutting wheel during the cutting process. This visibility is crucial for monitoring the progress of the cut and making real-time adjustments if necessary. It ensures that users can observe the cutting action closely without compromising on safety. Click here to learn more about the product or here to receive a personalized quote.

Question 52

How do the integrated LED lights in the cutting room of the GenCut GL170XY enhance its functionality?

Accepted Answer

The integrated LED lights in the cutting room of the GenCut GL170XY are a vital feature that enhances the machine&rsquo;s functionality by providing effective illumination. This lighting plays a crucial role in ensuring excellent visibility throughout the cutting area, which is essential for precise and safe operation. Firstly, the bright and focused illumination from the LED lights allows operators to clearly see the sample, cutting wheel, and other critical components during the cutting process. This visibility is key to achieving accurate cuts, as it enables the operator to monitor the alignment and progress of the cut in real time. Better visibility leads to improved precision, which is especially important in metallographic sample preparation where every detail matters. Moreover, the use of LED lighting ensures consistent illumination in the cutting area. LEDs are known for their long lifespan and consistent light output, which means they provide reliable lighting over time, reducing the need for frequent replacements or adjustments. This consistent lighting condition is important for maintaining the quality and consistency of cuts across different operations. Click here to learn more about the product or here to receive a personalized quote.

Question 53

How does the indoor ventilation fan in the GenCut GL 170XY abrasive cut-off saw contribute to the cutting environment?

Accepted Answer

The inclusion of an indoor ventilation fan in the GenCut GL 170XY abrasive cut-off saw is a significant feature that enhances the overall cutting environment. This fan plays a pivotal role in efficiently eliminating steam and smoke generated during the cutting process, which has multiple benefits for both the operator and the machine. Firstly, the removal of steam and smoke ensures a clearer and brighter working area. This is crucial for visibility, allowing operators to observe and precisely control the cutting process. Improved visibility directly correlates with enhanced accuracy and safety, as it helps in monitoring the progress of the cut and detecting any potential issues early. Additionally, the ventilation fan contributes to a healthier working environment. By extracting harmful fumes and particles generated during cutting, it reduces the operator&rsquo;s exposure to potentially hazardous materials. This aspect is particularly important in maintaining indoor air quality and ensuring compliance with health and safety regulations. Also, the fan aids in protecting the machine itself. By removing steam and smoke, it prevents the buildup of residues on the saw&rsquo;s components, which can affect its functionality and lifespan. Regular removal of these byproducts helps in maintaining the machine&rsquo;s efficiency and reduces the frequency of maintenance and cleaning. Click here to learn more about the product or here to receive a personalized quote.

Question 54

What are the benefits of the ergonomic design in the GenCut GL 170XY abrasive cut-off saw for laboratory sample preparation?

Accepted Answer

The GenCut GL 170XY abrasive cut-off saw is designed with a strong focus on ergonomics, enhancing user comfort and operational efficiency in laboratory sample preparation. This ergonomic design encompasses several key aspects, contributing to its overall effectiveness and appeal. Firstly, the saw operates with low noise levels. This feature is crucial in a laboratory environment where concentration and precision are paramount. Low noise operation not only creates a more comfortable and less distracting work environment but also contributes to reducing operator fatigue, especially during extended periods of use. In addition, the user-friendly controls of the GenCut GL 170XY facilitate ease of operation. Intuitive controls allow for quick and efficient adjustments, which is particularly beneficial for operators handling multiple samples or working under time constraints. This ease of operation is essential for maintaining consistency and accuracy in sample preparation. The saw also features a visually appealing appearance. While aesthetics might seem secondary in a laboratory setting, a well-designed machine can enhance the overall work environment, contributing to a more organized and professional atmosphere. Click here to learn more about the product or here to receive a personalized quote.

Question 55

How does the vertical body form of the GenCut GL170XY enhance its functionality and user experience?

Accepted Answer

The GenCut GL170XY&rsquo;s vertical design is ingeniously crafted to maximize both efficiency and user convenience in abrasive cutting applications. This design integrates several key components, each contributing significantly to the saw&rsquo;s overall performance. At the top, the upper safety cover is pivotal for operator safety, shielding users from direct exposure to cutting operations. This cover effectively contains any debris or splashes, maintaining a clean and safe working environment. The middle frame, forming the core of the saw&rsquo;s structure, ensures stability and support. Its robust design minimizes vibrations, a crucial factor for achieving precise and accurate cuts. This stability is especially important when working with delicate or intricate samples. On the sides, the right sliding door and the additional side door provide easy and practical access. This accessibility is essential for straightforward sample placement, adjustments, and routine maintenance, allowing for a smoother and more efficient workflow. The lower frame, incorporating an electrical box and a tool box, centralizes the saw&rsquo;s controls and maintenance tools. This strategic placement not only saves space but also enhances the operator&rsquo;s ease of access to essential controls and instruments. In addition, features like the fixture for sample stability, a rinsing tap for immediate cleaning, and an independent cooling water tank for temperature regulation, collectively enhance the saw&rsquo;s functionality. The fixture ensures secure sample positioning, the rinsing tap aids in maintaining a clear view during operations, and the cooling tank helps in managing the blade and sample temperature, extending their longevity. Click here to learn more about the product or here to receive a personalized quote.

Question 56

What are the advantages of the frequency conversion motor and direct cutting disc in the GenCut GL170XY?

Accepted Answer

The GenCut GL170XY incorporates a frequency conversion motor and a direct cutting disc, offering several advantages that enhance its performance in metallographic sample preparation. These features collectively contribute to its reputation as a high-efficiency, low-maintenance cutting tool. Firstly, the frequency conversion motor enables step-less speed regulation. This capability allows users to precisely adjust the cutting speed to suit different materials and requirements. Such versatility is crucial for achieving optimal cutting results across a wide range of sample types, from softer metals to harder alloys. Secondly, the direct driving mechanism of the cutting disc ensures high efficiency. Unlike belt-driven systems, the direct drive transfers power more effectively, reducing energy loss. This results in faster and more accurate cuts, improving overall productivity. Additionally, the direct drive system contributes to lower noise levels. This is particularly beneficial in laboratory settings where a quiet work environment is essential for concentration and communication. Reduced noise also enhances user comfort, especially during prolonged use. Moreover, the direct driving mechanism requires minimal maintenance. Without the need for regular belt replacements or adjustments, the saw demands less upkeep, reducing downtime and maintenance costs. This aspect is especially valuable in busy laboratory environments where time and resources are often limited. Click here to learn more about the product or here to receive a personalized quote.

Question 57

How does the GenCut GL170XY&rsquo;s design accommodate large workpieces for efficient maintenance and processing?

Accepted Answer

The GenCut GL170XY is strategically designed to handle large workpieces, a feature that significantly enhances its utility in settings where sizable samples are frequently processed. This specialized design addresses several key aspects of handling and cutting large workpieces, making maintenance and processing both efficient and convenient. One of the standout features is the incorporation of both a sliding door and a hinged door. This combination provides ample space and unrestricted access to the cutting area. The sliding door allows for easy lateral movement of large workpieces, reducing the physical effort required to position them. Meanwhile, the hinged door offers additional flexibility, especially useful for loading and unloading bulky or heavy samples. Furthermore, the cutting room&rsquo;s design, which allows entry from three different directions (up, front, and left), is a critical aspect of its functionality. This multi-directional access facilitates the positioning of large workpieces from various angles, ensuring that even the most awkwardly shaped or sized samples can be accommodated. This feature is particularly beneficial for intricate cutting tasks where precise positioning is crucial. The ability to access the cutting room from multiple directions not only simplifies the process of positioning large workpieces but also aids in their maintenance. Easy access is vital for regular cleaning, adjustments, and blade changes, particularly when dealing with larger samples that might otherwise obstruct these essential tasks. Click here to learn more about the product or here to receive a personalized quote.

Question 58

What is the significance of the enclosed work area and transparent protective cover in the GenCut GL170XY for safety and observation during cutting?

Accepted Answer

The enclosed work area and transparent protective cover of the GenCut GL170XY are critical design elements that play a significant role in enhancing both safety and observation during the cutting process. These features are meticulously integrated to address the dual needs of protection and visibility, which are paramount in metallographic cutting operations. Firstly, the complete enclosure of the work area is a fundamental safety measure. It acts as a physical barrier, preventing accidental contact with moving parts, particularly the cutting disc. This enclosure also serves to contain any flying debris, sparks, or splashes generated during cutting, thereby protecting the operator from potential injuries. Additionally, it helps in mitigating the spread of dust and particulate matter, contributing to a cleaner and healthier work environment. The transparent protective cover is another vital feature. While ensuring safety by providing a barrier, its transparency allows for clear observation of the cutting process. This visibility is crucial for precision in cutting operations, enabling the operator to monitor the progress of the cut and make real-time adjustments as needed. A clear view of the work area also helps in identifying any issues promptly, thereby reducing the risk of sample damage or equipment malfunction. Click here to learn more about the product or here to receive a personalized quote.

Question 59

Why is it recommended to avoid using tap water in the cooling water tank of the GenCut GL170XY?

Accepted Answer

The GenCut GL170XY&rsquo;s dedicated cooling water tank is an integral component designed to enhance the saw&rsquo;s cutting performance. The recommendation to avoid using tap water as a cooling liquid in this tank is based on several considerations related to the quality and effectiveness of the cooling process. Tap water often contains minerals and impurities that can lead to scale buildup and corrosion within the cooling system. Over time, these deposits can clog the cooling channels, reduce the efficiency of heat transfer, and ultimately diminish the performance and lifespan of the saw. Instead, using a specially formulated cooling liquid can prevent these issues, ensuring optimal cooling and prolonging the equipment&rsquo;s durability. After the completion of cutting work, the GenCut GL170XY&rsquo;s left rinsing tap plays a vital role in the maintenance of the cutting room. This rinsing tap enables easy and efficient cleaning of the cutting area. Providing a convenient water source allows for the quick removal of debris, dust, and cutting residues that accumulate during the cutting process. Regular cleaning not only maintains a clear and unobstructed view for the operator but also helps preserve the condition of the cutting room and the saw&rsquo;s components. Click here to learn more about the product or here to receive a personalized quote.

Question 60

How does the GenCut GL170XY&rsquo;s design cater to its versatility in cutting and processing a wide range of materials?

Accepted Answer

The design of the GenCut GL170XY abrasive cut-off saw is tailored to offer exceptional versatility, enabling it to efficiently cut and process a wide array of materials. This versatility is crucial for applications in various industries, including metallurgy, semiconductor manufacturing, geology, and ceramics. A key feature contributing to this versatility is the saw&rsquo;s robust construction. It is built to withstand the rigors of cutting hard materials like ferrous metals, heat-treated parts, and forgings, ensuring durability and precision in these demanding applications. The saw&rsquo;s cutting mechanism is adept at handling both ferrous and non-ferrous metals, making it a valuable tool in diverse metallurgical contexts. Its precision and stability are particularly beneficial for cutting delicate materials such as semiconductors, crystals, and ceramics, where a gentle yet accurate cut is essential to preserve the integrity of the sample. Furthermore, the GenCut GL170XY is equipped with a cooling system that regulates temperature during cutting, a critical feature when working with materials like metals that generate substantial heat. This cooling system helps in preventing overheating and potential damage to the samples. In addition, the saw&rsquo;s ability to accommodate large workpieces and provide easy access for sample placement and adjustment enhances its adaptability. This flexibility is vital in processing larger or irregularly shaped samples, such as rocks in geological studies. Click here to learn more about the product or here to receive a personalized quote.

Question 61

What is included in the standard configuration of the GenCut GL120XY Multi-Function Abrasive Cut-Off Saw?

Accepted Answer

The standard configuration of the GenCut GL120XY Multi-Function Abrasive Cut-Off Saw includes several components that are designed for efficient and precise cutting operations. These components are: GenCut GL120XY Cutting Saw: The main unit is designed for high-precision metallographic cutting. Coolant Chamber: Ensures effective cooling during cutting. Wrenches (13#-15# and 17#-19#): For assembly, maintenance, and adjustment. Internal Hexagonal Wrenches (6mm and 8mm): For secure fastening and adjustment of different parts. Water Inlet Tube and Drain Pipe: For the cooling system, ensuring continuous water supply and drainage. Diamond Cutting Wheel (&Phi;350 x 2.5 x &Phi;32mm): Precision-engineered for clean and accurate cuts. Water Tank and Pump: Part of the cooling system to maintain optimal cutting conditions. Operation Manual: Provides detailed instructions on machine setup, operation, and maintenance. Click here to learn more about the product or here to receive a personalized quote.

Question 62

What is the input voltage requirement for the GenCut GL120XY Multi-Function Abrasive Cut-Off Saw?

Accepted Answer

The input voltage requirement for the GenCut GL120XY Multi-Function Abrasive Cut-Off Saw is 380 volts (V), with a frequency of 50/60 hertz (Hz), and it operates on a 3-phase power supply. With this industrial-grade voltage and power configuration, the machine receives a stable and adequate power supply to provide high performance. Operating at 380V and utilizing a 3-phase power supply allows the GenCut GL120XY to deliver consistent power to its components, including the 4kW motor. This setup supports the machine&rsquo;s robust performance, enabling it to handle demanding cutting tasks with precision and efficiency. The 3-phase power supply is particularly beneficial in industrial applications as it provides a more balanced and reliable electricity flow. This configuration also provides compatibility with standard industrial electrical systems. This makes it easier to integrate the GenCut GL120XY into existing setups without extensive modifications. The specified voltage and frequency support the machine&rsquo;s advanced features, such as automated table movements and variable speed control. Click here to learn more about the product or here to receive a personalized quote.

Question 63

What is the input power of the GenCut GL120XY Multi-Function Abrasive Cut-Off Saw

Accepted Answer

The input power of the GenCut GL120XY Multi-Function Abrasive Cut-Off Saw is 4 kilowatts (kW). This substantial power rating guarantees that the machine operates efficiently and effectively. It provides the necessary strength to cut through many different metal specimens with precision and consistency. The 4kW input power supports robust performance for high-precision metallographic sample preparation. It allows the cutting wheel to maintain a stable and consistent speed, even when cutting through tougher or thicker materials. This power capacity also contributes to the machine&rsquo;s ability to handle demanding tasks without significant power fluctuations or performance reductions. Furthermore, the high input power is essential for driving the automated features of the GenCut GL120XY. This includes the automated XY table movement, variable speed control, and a powerful cooling system. These features work together to ensure that each cut is precise, clean, and free from thermal damage. Click here to learn more about the product or here to receive a personalized quote.

Question 64

What type of cutting does the GenCut GL120XY Multi-Function Abrasive Cut-Off Saw perform?

Accepted Answer

The GenCut GL120XY Multi-Function Abrasive Cut-Off Saw is designed for vertical cutting. This vertical cutting capability allows the saw to make precise, downward cuts through metal specimens. During the cutting process, this is essential in order to maintain control and accuracy. Vertical cutting is advantageous in metallographic sample preparation as it provides straight and clean cuts, preserving the sample&rsquo;s integrity. The vertical orientation helps manage cutting forces more effectively, reducing the risk of deflection or deviation with other cutting orientations. This type of cutting is ideal for a number of applications, providing consistent and reliable results in both laboratory and industrial settings. The vertical cutting design of the GenCut GL120XY, combined with its other advanced features like automated XY table movement and precise control systems, ensures high-quality, repeatable cuts essential for detailed metallographic analysis. Click here to learn more about the product or here to receive a personalized quote.

Metal Testing Equipment

Categories

Products

Products

GenCut GL 170XY – Multi Function Abrasive Cut Off Saw with Touch Screen User Friendly Interface and Large Cutting Capacity – Φ170mm

GenCut GL 120XY – Multi Function Abrasive Cut Off Saw with Touch Screen User Friendly Interface and Large Cutting Capacity Φ120mm

Metallography Consumables

FAQs

What types of low speed precision cut off saws do you offer?

What is the appropriate metallography precision cutter for delicate metals?

Do you offer consumables for your precision metallographic cutters?

What does your metallography cutter line up consist of?

What separates NextGen's precision sectioning equipment for the competition?

What different types of precision cutters do you offer?
