Grips and Fixtures for Hydraulic Universal Testing Machines

Trust

Reliable Fixturing Solutions for High-Force Hydraulic Testing

NextGen Bolt and nut tensile grip - NGB206AHydraulic Universal Testing Machines (UTMs) from NextGen are engineered for high-force material testing across demanding industries like aerospace, automotive, construction, and metallurgy. To match the force and complexity of these applications, specialized grips and fixtures are required to deliver safe, accurate, and repeatable results. NextGen’s fixturing solutions for hydraulic UTMs are designed in full compliance with ASTM, ISO, DIN, and JIS standards, covering a wide range of tests including tensile shear, proof load, flexural bending, and rock or composite splitting.

Each fixture is fully compatible with NextGen’s hydraulic UTM systems, ensuring smooth integration and high durability even under daily intensive use. Whether you are testing fasteners, composites, or structural components, these grips and fixtures provide the reliability and performance necessary to meet modern testing demands.


NGA106A – Tensile Shear Fixture

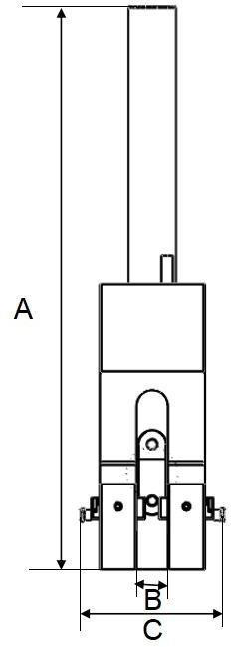

NextGen Tensile shear fixture - NGA106A - sizeNextGen Tensile shear fixture - NGA106A The NGA106A Tensile Shear Fixture is designed for shear testing of steel welding mesh. With a maximum load capacity of up to 1000 kN, this fixture offers precise and repeatable performance for suspended clamping applications. It features hydraulic clamping from the upper grip and supports a variety of standard specimen diameters. The fixture conforms to GB/T 1499.3 and is engineered for use under ambient test conditions.

  • Application: Shear tests for steel welding mesh.
  • Maximum Capacity: ≤1000 kN load.
  • Connection: Clamped by upper hydraulic grip.
  • Grip Weight: 10 kg (22 lbs).
  • Connecting Rod Diameter: Φ32 mm.
  • Grip Dimensions:
    • Length (A): 15.6 in / 395 mm
    • Groove Width (B): 0.87 in / 22 mm
    • Grip Width (C): 4 in / 101 mm
  • Working Temperature: Ambient.
  • Standard Compliance: GB/T 1499.3.
  • Clamping Mode: Suspended.
  • Minimum Test Space Requirement: 425 mm.
  • Supported Specimen Diameters: Φ6, Φ8, Φ10, Φ12, Φ16 mm.

Technical Specifications – NGA106A Tensile Shear Fixture

Parameter Specification
Application Shear test for steel welding mesh
Maximum Force ≤1000 kN
Grip Weight 10 kg
Connection Clamped by upper hydraulic grip
Connecting Rod Diameter Φ32 mm
Grip Length (A) 395 mm
Groove Width (B) 22 mm
Grip Width (C) 101 mm
Working Temperature Ambient
Standard GB/T 1499.3
Clamping Mode Suspended
Minimum Test Space 425 mm
Specimen Diameter Φ6, Φ8, Φ10, Φ12, Φ16 mm

NGA605A – Proof Load Test for Nuts

NextGen Proof load test for nuts - NGA605A - SizeNextGen Proof load test for nuts - NGA605A The NGA605A Proof Load Test Fixture is engineered for verifying the proof load strength of nuts under controlled tensile loading. Capable of handling up to 600 kN, this fixture complies with GB/T 3098.2-2010 and ISO 898-2012 standards. It is suitable for suspended clamping via hydraulic grips and supports a wide range of both standard and optional nut sizes, including fine thread options. This fixture is ideal for ensuring compliance with nut property class ≤10 specifications.

  • Application: Proof load test for nuts.
  • Maximum Capacity: ≤600 kN load.
  • Connection: Clamped by hydraulic grip.
  • Weight: 12 kg (upper grip), 12 kg (lower grip).
  • Grip Dimensions:
    • Upper Grip Height (A): 290 mm
    • Lower Grip Height (B): 290 mm
    • Grip Width (C): 67.5 mm
  • Working Temperature: Ambient.
  • Standard Compliance: GB/T 3098.2-2010, ISO 898-2012.
  • Clamping Mode: Suspended.
  • Nut Property Class: ≤10.
  • Standard Accessories (Nut Sizes): M6, M12, M16, M20.
  • Optional Accessories (Nut Sizes): M5, M7, M8, M10, M14, M18, M22, M24, M27, and M5–M27 with fine pitch threads.

Technical Specifications – NGA605A Proof Load Test Fixture for Nuts

Parameter Specification
Application Proof load test for nuts
Maximum Force ≤600 kN
Weight Upper Grip: 12 kg
Lower Grip: 12 kg
Connection Clamped by hydraulic grip
Height (A / B) Upper: 290 mm
Lower: 290 mm
Grip Width (C) 67.5 mm
Working Temperature Ambient
Standard GB/T 3098.2-2010ISO 898-2012
Clamping Mode Suspended
Nut Property Class ≤10
Standard Accessories M6, M12, M16, M20
Optional Accessories M5, M7, M8, M10, M14, M18, M22, M24, M27,M5–M27 with fine pitch thread

NGA206A – Proof Load Test for Nuts

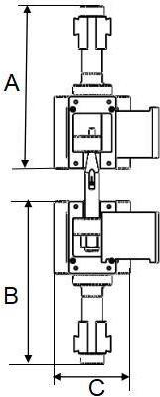

NextGen Proof load test for nuts - NGA206A - Size NextGen Proof load test for nuts - NGA206AThe NGA206A Proof Load Test Fixture is designed for testing the tensile proof load capacity of nuts in compliance with GB/T 3098.2-2010 and ISO 898-2012 standards. With a robust load capacity of up to 2000 kN, this fixture accommodates larger nut sizes and higher force applications. It uses a hydraulic clamping system and operates under ambient conditions. The system supports both standard and optional thread sizes, including fine-pitch configurations, for broad testing coverage.

  • Application: Proof load test for nuts.
  • Maximum Capacity: ≤2000 kN load.
  • Connection: Clamped by hydraulic grip.
  • Weight: 24 kg (upper grip), 24 kg (lower grip).
  • Grip Dimensions:
    • Upper Grip Height (A): 375 mm
    • Lower Grip Height (B): 375 mm
    • Grip Width (C): 78 mm
  • Working Temperature: Ambient.
  • Standard Compliance: GB/T 3098.2-2010, ISO 898-2012.
  • Clamping Mode: Suspended.
  • Nut Property Class: ≤10.
  • Standard Accessories (Nut Sizes): M16, M20, M27, M36.
  • Optional Accessories (Nut Sizes): M5, M6, M7, M8, M10, M12, M14, M18, M22, M24, M30, M33, M39, and M5–M39 with fine pitch threads.

Technical Specifications – NGA206A Proof Load Test Fixture for Nuts

Parameter Specification
Application Proof load test for nuts
Maximum Force ≤2000 kN
Weight Upper Grip: 24 kg
Lower Grip: 24 kg
Connection Clamped by hydraulic grip
Height (A / B) Upper: 375 mm
Lower: 375 mm
Grip Width (C) 78 mm
Working Temperature Ambient
Standard GB/T 3098.2-2010ISO 898-2012
Clamping Mode Suspended
Nut Property Class ≤10
Standard Accessories M16, M20, M27, M36
Optional Accessories M5–M39 incl. fine pitch: M5, M6, M7, M8, M10, M12, M14,M18, M22, M24, M30, M33, M39 and all fine threads

NGB605A – Bolt and Nut Tensile Grip

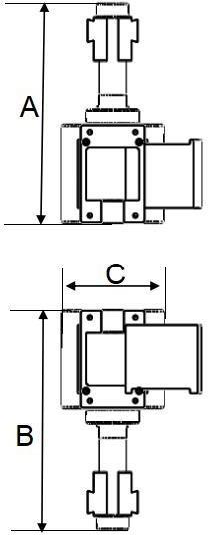

NextGen Bolt and nut tensile grip - NGB605A - Size NextGen Bolt and nut tensile grip - NGB605AThe NGB605A Bolt and Nut Tensile Grip is a multifunctional fixture designed for tension, proof load, and wedge load testing of bolts and nuts. Engineered to handle up to 600 kN of force, it conforms to GB/T 3098.2-2010 and ISO 898-2012 standards. The system is suspended and clamped hydraulically for secure and accurate testing. It supports a wide variety of thread sizes, including both standard and fine pitch configurations, and is suitable for nut property class ≤10.9.

  • Application: Tension, proof load, and wedge load tests for bolts and nuts.
  • Maximum Capacity: ≤600 kN load.
  • Connection: Clamped by hydraulic grip.
  • Weight: 12 kg (upper grip), 12 kg (lower grip).
  • Grip Dimensions:
    • Upper Grip Height (A): 290 mm
    • Lower Grip Height (B): 290 mm
    • Grip Width (C): 67.5 mm
  • Working Temperature: Ambient.
  • Standard Compliance: GB/T 3098.2-2010, ISO 898-2012.
  • Clamping Mode: Suspended.
  • Nut Property Class: ≤10.9.
  • Standard Accessories (Nut Sizes): M6, M12, M16, M20.
  • Optional Accessories (Nut Sizes): M4, M5, M7, M8, M10, M14, M18, M22, M24, M27 and M4–M27 with fine pitch threads.

Technical Specifications – NGB605A Bolt and Nut Tensile Grip

Parameter Specification
Application Tension, proof load, and wedge load test for bolts and nuts
Maximum Force ≤600 kN
Weight Upper Grip: 12 kg
Lower Grip: 12 kg
Connection Clamped by hydraulic grip
Height (A / B) Upper: 290 mm
Lower: 290 mm
Grip Width (C) 67.5 mm
Working Temperature Ambient
Standard GB/T 3098.2-2010ISO 898-2012
Clamping Mode Suspended
Nut Property Class ≤10.9
Standard Accessories M6, M12, M16, M20
Optional Accessories M4–M27 incl. fine threads: M4, M5, M7, M8, M10, M14,M18, M22, M24, M27 and fine-pitch M4–M27

Minimum Required Bolt Specimen Lengths

The table below shows the shortest acceptable specimen length (in mm) for various bolt thread specifications when performing wedge load, tensile, or stud tension tests. These lengths ensure the sample fits securely and performs accurately under load.

Specification M4 M5 M6 M7 M8 M9 M10 M12
Specimen Length (mm) 9 10 11 19 20 21 22 32
Specification M14 M16 M18 M20 M22 M24 M27
Specimen Length (mm) 39 41 93 100 102 104 107

Load Configurations

The illustrations below depict the different configurations supported by the fixture for bolt and nut testing:

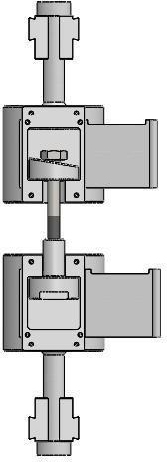

NextGen Bolt and nut tensile grip - NGB605A - Size 2 NextGen Bolt and nut tensile grip - NGB605A - Size 4 NextGen Bolt and nut tensile grip - NGB605A - Size 5
Fig. 1 – Wedge Load Fig. 2 – Bolt Tension Fig. 3 – Stud Tension
  • Fig. 1 – Wedge Load: Applied angular load to evaluate bolt integrity under shear forces.
  • Fig. 2 – Bolt Tension: Direct tensile load applied along the axis of the bolt.
  • Fig. 3 – Stud Tension: Axial tensile loading applied to threaded studs without heads.

NGB206A – Bolt and Nut Tensile Grip

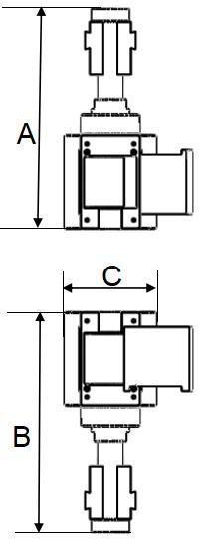

NextGen Bolt and nut tensile grip - NGB206A - SizeNextGen Bolt and nut tensile grip - NGB206A The NGB206A Bolt and Nut Tensile Grip is designed for high-force testing applications including tension, proof load, and wedge load testing of bolts and nuts. Supporting loads up to 2000 kN, this system is ideal for testing large-diameter fasteners in compliance with GB/T 3098.2-2010 and ISO 898-2012. With hydraulic clamping and suspended test mode, it ensures safe and repeatable results under ambient conditions. This grip supports nut property classes up to 12.9 and accommodates a wide range of standard and optional accessories.

  • Application: Tension, proof load, and wedge load testing for bolts and nuts.
  • Maximum Capacity: ≤2000 kN load.
  • Connection: Clamped by hydraulic grip.
  • Weight: 24 kg (upper grip), 24 kg (lower grip).
  • Grip Dimensions:
    • Upper Grip Height (A): 375 mm
    • Lower Grip Height (B): 375 mm
    • Grip Width (C): 78 mm
  • Working Temperature: Ambient.
  • Standard Compliance: GB/T 3098.2-2010, ISO 898-2012.
  • Clamping Mode: Suspended.
  • Nut Property Class: ≤12.9.
  • Standard Accessories (Nut Sizes): M16, M120, M27, M36.
  • Optional Accessories (Nut Sizes): M5, M6, M7, M8, M10, M12, M14, M18, M22, M24, M30, M33, M39 and M5–M39 with fine pitch threads.

Technical Specifications – NGB206A Bolt and Nut Tensile Grip

Parameter Specification
Application Tension, proof load, wedge load test for bolts and nuts
Maximum Force ≤2000 kN
Weight Upper Grip: 24 kg
Lower Grip: 24 kg
Connection Clamped by hydraulic grip
Height (A / B) Upper: 375 mm
Lower: 375 mm
Grip Width (C) 78 mm
Working Temperature Ambient
Standard GB/T 3098.2-2010ISO 898-2012
Clamping Mode Suspended
Nut Property Class ≤12.9
Standard Accessories M16, M120, M27, M36
Optional Accessories M5–M39 incl. fine threads: M5, M6, M7, M8, M10, M12, M14,M18, M22, M24, M30, M33, M39 and all fine pitch M5–M39

Minimum Required Specimen Lengths for Bolt Testing

Specification M4 M5 M6 M7 M8 M9 M10 M12 M14 M16
Specimen Length (mm) 9 10 11 19 20 21 22 42 49 51
Specification M18 M20 M22 M24 M27 M30 M33 M36 M39
Specimen Length (mm) 103 110 112 114 117 130 133 136 139

Load Test Configuration Illustrations

NextGen Bolt and nut tensile grip - NGB605A - Size 2 NextGen Bolt and nut tensile grip - NGB605A - Size 4 NextGen Bolt and nut tensile grip - NGB605A - Size 5
Fig. 1 – Wedge Load Fig. 2 – Bolt Tension Fig. 3 – Stud Tension
  • Fig.1 – Wedge Load: Applies a shear force through angular alignment to evaluate bolt strength under inclined stress.
  • Fig.2 – Bolt Tension: Applies direct axial tension through standard bolt grip interface.
  • Fig.3 – Stud Tension: Applies axial force to threaded studs using dual-threaded support blocks.

NextGen’s grips and fixtures for hydraulic universal testing machines are built to perform under extreme conditions while maintaining full compliance with leading international standards. These high-load solutions empower manufacturers, laboratories, and research institutions to conduct critical mechanical property evaluations with precision and confidence.

Whether you're upgrading existing systems or setting up a new testing lab, investing in advanced hydraulic fixturing from NextGen ensures long-term accuracy, reliability, and global testing compliance. Reach out to NextGen Material Testing Inc. today to enhance your testing capabilities.
