GenCut GL 1000 Series – High Speed Precision Cut-Off Saw for Metallographic Sample Preparation
Metal Testing Equipment
Description

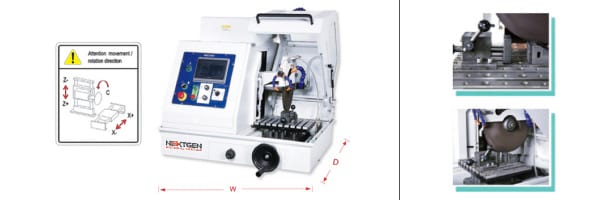

The GenCut GL 1000 Series high speed precision cut-off saw is designed for a laboratory that allows the operator to section any kind of material with virtually no deformation. The GenCut GL1000 precision metallographic cut-off saw is a high speed precision cutter, able to use both diamond and abrasive blades. It additionally allows to cut on X & Z axis to a perfect cut every time.
| Model # | GL 1000 High Speed |
|---|---|
| Motor Power | 2Kw |
| Max. Round Sample | Max. Ø6cm |
| Cut-Off Blade | Max. 10" Max. Ø25.5x Ø3.175cm |
| Machine Size (WxDxH) | 35.45x35.45x35.45" 90x90x90cm |
| Weight | 570 lbs / 258kg |
| Feeding Method | Auto |
| Effective Rotational Speed | 100-3000rpm |
| Horizontal Movement | 7.87" / 20cm |
| Vertical Movement | 3.15" / 8cm |
| Power Supply | AC 220V - 3Ø |
Related Products
GenCut GL 100 Series - Low Speed Automatic Precision Cut-Off Saw for Metallographic Sample Preparation
GenCut GL 100 Series - Low Speed Precision Cut-Off Saws are manual versatile and powerful machines and are perfect for the user needing to section delicate parts or materials with no deformation. The system can accommodate 3"-7" (75mm to 175mm) cutting wheels. The system is additionally equipped with all the necessary grips and fixtures for your long-term metallographic cutting needs.
GenCut GL 200 Series - Low Speed Advanced Automatic Precision Cut-Off Saw for Metallographic Sample Preparation
GenCut GL 200 Series low speed advanced automatic precision cut off saws are well established in the metals industry. The diamond saw precision cutters are a perfect fit for cutting and sectioning a wide variety of small and delicate samples particularly when the material structure is not homogeneous. The system can accommodate 3"-7" (75mm to 175mm) cutting wheels. The system additionally is equipped with all the necessary grips and fixtures for your long-term metallographic cutting needs.
GenCut GL 600 to 800 Series - Heavy Duty Precision Metallographic Cutter - High Speed Precision Diamond Saw for Metallographic Sample Preparation
GenCut GL 600, 700 and 800 Series is a compact and powerful, table-top automatic and manual abrasive cutter, that fits well into any metallographic or materials oriented lab. The system can accommodate 10"-12" (250mm to 300mm) cutting wheels. It is equipped with a robust 1-3HP motor. The machine is designed for heavy duty continual use.
GenCut 2000 Series - High Speed Precision and Abrasive Cut-Off Saw for Metallographic Sample Preparation
GenCut GL 2000 precision and abrasive cut-off saw is an automatic metallographic cutter with an excellent touch screen panel. This precision/abrasive cutter enables simple, quick and easy positioning of samples for cutting and sectioning. It allows metallographic cutting in 2 directions, large cutting capacity and programmable cutting function. GL 2000 recision and abrasive cut-off machine can use either the abrasive cut off blade or the diamond blade on variable rotational speed.
GenCut QA Series - Manual Precision Cut-Off Saw - Metallographic Sample Preparation
GenCut QA Series manual precision cut off saws are manual units excellent for section cutting from printed circuit boards, other large flat materials or electronic components. These manual metallographic cutters are equipped with a diamond blade.
