GenCut GL 200E – Low Speed Precision Series Automatic Precision Cutter with User-Friendly Touch Screen Interface with max. cutting diameter of 60mm
Metal Testing Equipment
Description

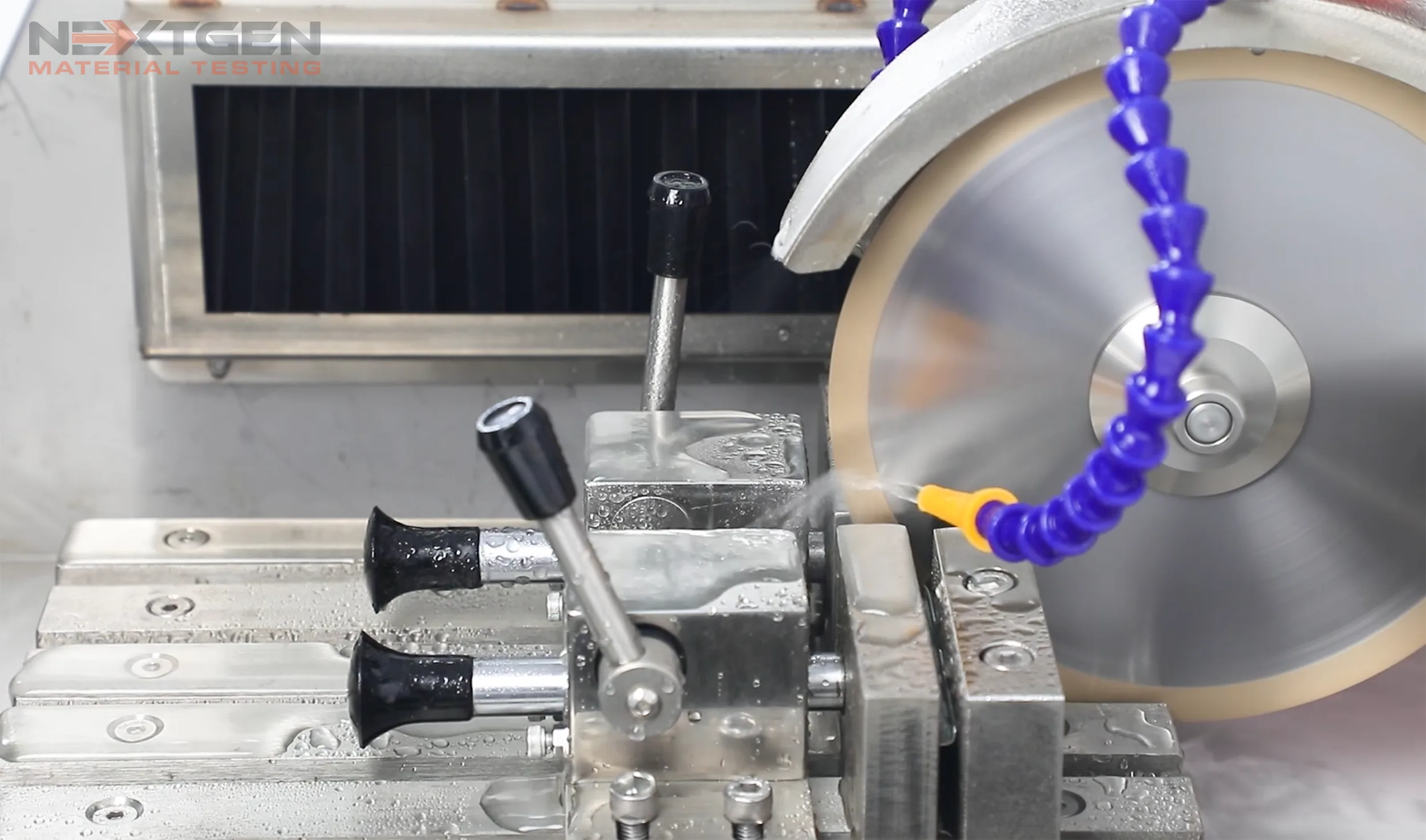

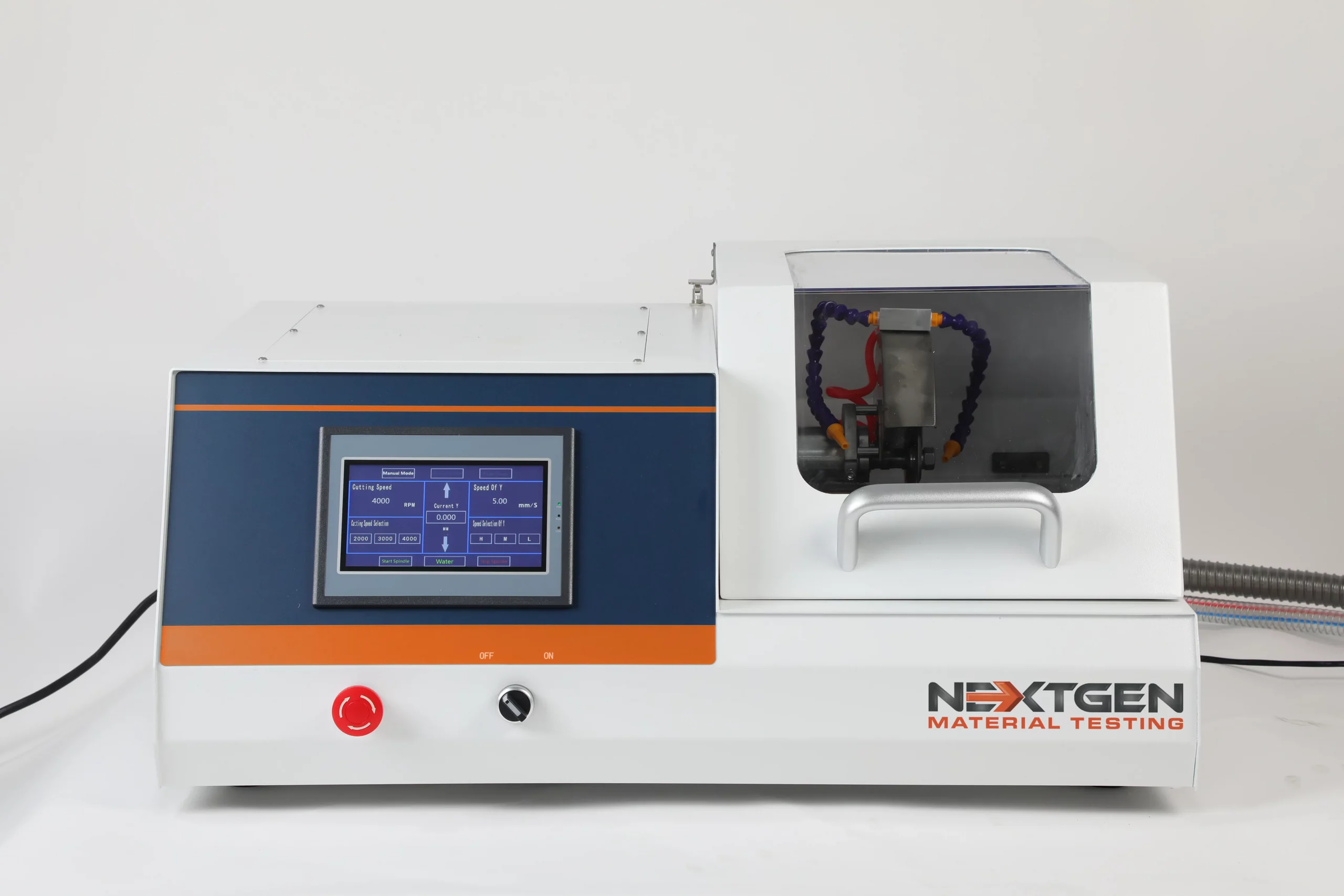

GenCut GL 200E high-speed precision cutting machine includes a touch screen and PLC control, with stable performance and real-time display of cutting parameters. The GenCut GL 200E features Y-axis automatic feed cutting, with high position accuracy, large speed range and high cutting capacity; the cutting chamber is a fully enclosed structure with transparent protective cover for observation during cutting. It is equipped with a circulating cooling system allowing for the surface of the cut specimen to be bright and flat without burns.
The GenCut GL 200E is especially suitable for precision deformation-free cutting of metals, electronic components, ceramic materials, crystals, hard alloys, rock and ore, concrete, organic materials, biological materials (teeth, bone) and other materials, and is ideal for automatic precision cutting on the table.
GenCut GL 200E Technical Specifications
|
Model |
GenCut GL200E |
|
Cutting Method |
Automatic spindle Y-feed (automatic return when cutting is complete), manual feed, pulse feed (automatic return when cutting is complete) |
|
Feed Speed |
0-600mm/min (Adjustment steps of 0.01mm) |
|
Cutting Wheel Size |
Φ200 x 1.0 x Φ32mm |
|
Spindle Speed |
500-5000rpm |
|
Y-Axis Travel |
260mm |
|
Maximum Cutting Diameter |
Φ60mm |
|
Motor Power |
1500W |
|
Input Power |
220V 50/60Hz 1 Phase |
|
Display and Control |
Touch Screen |
|
Cutting Platform Dimensions |
225 x 320mm |
|
Cutting Fixture |
Quick Clamp |
|
Dimensions & Weight |
33” x 32” x 16” 287lbs / 830 x 820 x 410 mm 130kg |
|
Transverse Clamping Width |
225mm |
|
Longitudinal Clamping Length |
150mm |
Standard Configuration
-
GenCut GL200E Cutting Saw
-
Coolant Chamber
-
Wrench 13#-15#
-
Wrench 17#-19#
-
Internal Hexagonal Wrench 6mm and 8mm
-
Water Inlet Tube
-
Drain Pipe
-
Diamond Cutting Wheel Φ200 x 1.0 x Φ32mm and Operation Manual
GenCut GL 200E Features
-
Digital Touch Screen Control with programmable menu structure for a user-friendly operating experience
-
Precision cutting off with micrometer head control
-
Closed transparent protective cover and safety switch provide protection for operators
-
Closed loop control cutting to prevent overload of the motor
-
Automatically stops after finishing the cut
-
Built-in Movable Coolant Tank
-
Compact body, small footprint and convenient operation and maintenance
