GenCut NKC 2000 Series – Compact Manual and Automatic Abrasive Cut-Off Saw for Metallographic Sample Preparation
Metal Testing Equipment
Description
NKC 2000 Series compact manual and automatic abrasive cut-off saws are a smaller version of our larger cutters, GenCut NKC 4000 Series, with the same robust built, precision components and ease of use. The units have a cutting depth of 200mm, and the magnetic cleaning spray gun cane be stored in any location. The metallographic cutters come with two quick locking clamping vices as well as 80L recirculating tank. The unit also is equipped with wheels for ease of mobility and storage.
The abrasive cutters are programmed for automatic saw return to its original position after each cut cycle.
GenCut NKC - compact abrasive metallographic cutters are both manual and automatic. Both metallographic cutting options are at your disposal based on your operator requirement needs.

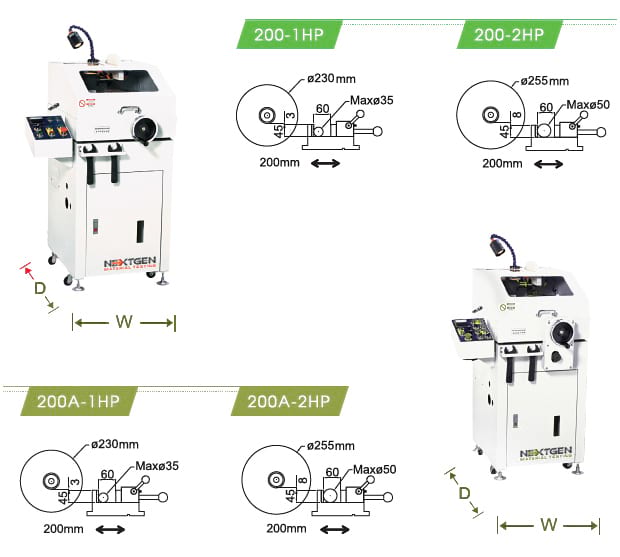

| Specifications | NKC2000M | NKC2000B | ||||
|---|---|---|---|---|---|---|
| Motor Power | 1HP | 2HP | 3HP | 1HP | 2HP | 3HP |
| Sample Dim. Max. (cm) | Ø3.5cm 15Tx60L |
Ø5.0cm 20Tx60L |
Ø6.0cm 15Tx60L |
Ø3.5cm 15Tx60L |
Ø5.0cm 20Tx60L |
Ø6.0cm 15Tx60L |
| Cut Off Blade (cm) |
Ø230x Ø31.75 | Ø255x Ø31.75 | Ø230x Ø31.75 | Ø255x Ø31.75 | ||
| Feed Rate | 0-15 cm/min (min:50) | |||||
| Feeding Method | Manual Control Button and Hand Wheel | Manual Control Button and Hand Wheel | ||||
| Auto Home Point return after cutting | ||||||
| Rotational Speed | 3000 RPM (60Hz) & 2500 RPM (50Hz) | |||||
| Cutting Depth | 20 cm | |||||
| Vise | Left and right vise (twin) / Fastener Vise (clamping) | |||||
| Vise Capacity | Max. open 6cm x 4.5cm | |||||
| Horizontal Movement | 2.5cm movement in Y Direction Separately | |||||
| Cooling | 1/8HP - 3 Ø | |||||
| Water Tank Capacity | 40L | |||||
| Machine Dimensions WxDxH (cm) | 83x85x130 | 83x90x130 | ||||
| Machine Weight (kg) | 212 | 218 | 230 | 226 | 230 | 250 |
| Power Supply | 3 Ø - AC220V/380V AC200V/415/440V (acceptable special order) |
|||||
| Standard Accessories | Wrench 2pcs, cut off blade 2pcs, coolant 3L | |||||
| Option | Acceptable Special Vise Ordered | |||||
Option & Special Vise
Special functions and clamp can be designed according to your needs
Consumables
| No | Description | Size | QTY/PACK |
|---|---|---|---|
| 1 | TS-soft steels | Ø9”(23cm) | 10 |
| 2 | TM-medium & hard steels | Ø9”(23cm) | 10 |
| 3 | TH-hard & very hard steels | Ø9”(23cm) | 10 |
| 4 | TS-soft steels | Ø10”(25.4cm) | 10 |
| 5 | TM-medium & hard steels | Ø10”(25.4cm) | 10 |
| 6 | TH-hard & very hard steels | Ø10”(25.4cm) | 10 |
| 7 | Non Ferrous Materials, Titanium, Cast Iron | Ø10”(25.4cm) | 10 |
| 8 | TS-soft steels | Ø12”(30.5cm) | 10 |
| 9 | TM-medium & hard steels | Ø12”(30.5cm) | 10 |
| 10 | TH-hard & very hard steels | Ø12”(30.5cm) | 10 |
| 11 | TS-soft steels | Ø14”(35.5cm) | 10 |
| 12 | TM-medium & hard steels | Ø14”(35.5cm) | 10 |
| 13 | TH-hard & very hard steels | Ø14”(35.5cm) | 10 |
| 14 | TS-soft steels | Ø16”(40.6cm) | 10 |
| 15 | TM-medium & hard steels | Ø16”(40.6cm) | 10 |
| 16 | TH-hard & very hard steels | Ø16”(40.6cm) | 10 |
Coolant
| No | Description | Size | QTY/PACK |
|---|---|---|---|
| 1 | Oil Based - Creamy White | 1L | 20L |
