All You Need to Know About Metallography Basics

What is Metallography?

Metallography is the analysis of a material’s microstructure. Its main goal is to determine if it was properly processed. It is vital in identifying its reliability and troubleshoot any related problems.

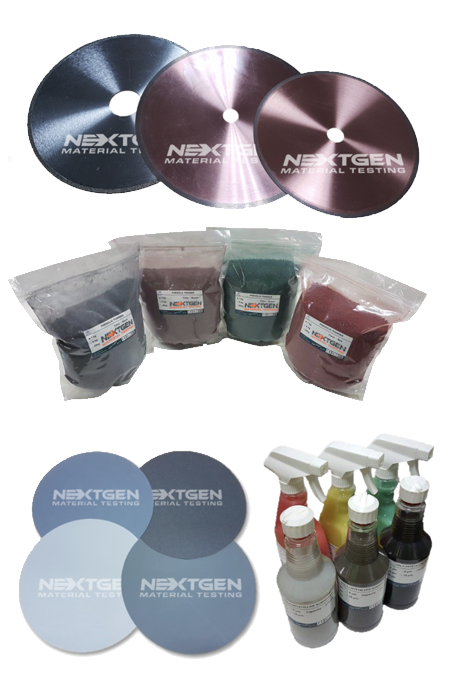

Technical Information on Metallographic Consumables

As polishing is a mere part of metallography, below are details on each of its phases:

Phase 1: Cutting and Mounting

Locating the area of analysis is the first step in metallography. To do this, cutting or sectioning is the most common technique used. To cut such specimen, there are two types of cutting consumables:

To cut ductile materials, an abrasive blade must be used. Examples include rubbers, metals, metal matrix composites, polymer matrix composites, and plastics.

For delicate or precise samples, it requires the use of a wafer blade. Aside from diamond blade, cubic boron nitride (CBN) is another alternative.

In addition to these two types of abrasives in the form of blades, cutting fluid is also a good alternative. It is a type of coolant designed for metallography.

After cutting the samples, they are mounted to hold them in place. There are two types of mounting consumables available:

To mount many samples at the same time, you’ll need a tool called castable mounting. This works by using castable resin as a hardener or catalyst for polymerization. Polymerization is where small molecules combine to form a network molecule called polymer. Examples of resins used in castable mounting include acrylic, epoxy, and polyester.

Another mounting technique is compression mounting. Compared to castable mounting, compression mounting retains more specimen edge. For a successful procedure, consider the mounting machine’s highest heating temperature. Also, take note of the water and heater cooler’s connection to the mold assembly. The closer they are, the better. Examples of resins used include acrylic, conductive, diallyl, epoxy, and phenolic resins.

Phase 2: Grinding or Lapping

For the next step, the specimen must be free from any damage caused by cutting. Phase 2 is the grinding stage. However, note that grinding can do more damage than the cutting phase if the latter isn’t done precisely.

Typical grinding papers are made of alumina, diamond, silicon carbide (SiC), or zirconia. Below is a more detailed description of each material.

Alumina is usually used in final polishing due to its high durability and hardness. Compared to SiC, alumina easily breaks down with colloidal or submicron particles.

Known as the hardest material to man, diamond is ideal for coarse grinding. However, its price makes it impractical except on hard ceramics and non-ferrous metals. Diamond disks are used to complete the grinding process using this material.

A combination of silica and carbon, silicon carbide (SiC) is ideal for cutting and grinding. This is due to its sharpness and hardness. Since it’s quite brittle, it often produces new sharp edges. This unique feature is called “self-sharpening.” SiC is excellent for minimizing damage while maximizing the specimen’s cutting rates.

A less common abrasive used in coarse grinding is zircon. Although it is not as sharp or as hard, this material can last a long time. However, its below-average features need higher pressures to see the effects.

Phase 3: Rough Polishing

Before a specimen can undergo analysis, it must go through the polishing process. This process completely removes all damage done by the previous phases.

There are four types of consumables for rough polishing. These are polishing cloths, polishing pads, monocrystalline diamond, and polycrystalline diamond.

Polishing cloths vary depending on the height of their fibers (known as nap), and stiffness. For rough polishing, preferred fiber cloths are stiffer, lower nap, and non-woven.

For faster changing and storage, magnetic metallographic polishing pads can be used. This works by putting the polishing pad on the MAGNETON-based working plate. To remove the pad, simply pull and remove it.

Although synthetic diamond is more common, monocrystalline diamond is another option. It works by applying beads of diamond and extender to make the polishing pad damp.

The last rough polishing material is polycrystalline diamond. Compared to its earlier variety, this has higher removal rates and better finishes.

Phase 4: Final Polishing and Analysis

During the final polishing, small clean-ups are done to remove any remaining blemish. However, this must be done with care. Too much polishing can result in inclusion pull-out, smearing, edge rounding, and relief. There are only two varieties of materials in this process. These are alumina and colloidal silica.

After the four phases are completed, the specimen is ready to undergo analysis.

How to Lessen the Wear and Tear of the Polishing Consumables

The polishing process can be efficiently done by following the tips below:

Reduce the damage done during the cutting or sectioning phase

As mentioned, the less damage done during the cutting, the less work will be needed on the polishing.

Use the finest abrasives available for the grinding or lapping process

To achieve the abovementioned tip, only the finest materials must be used. Using fine abrasives will achieve higher accuracy compared to coarse or brittle alternatives.

For the polishing, use flat base plates

While the first two tips are obvious, this tip is usually overlooked. If the specimen doesn’t lay flat on the polishing plate, a differential pressure might occur. Hence, it can further result to “polishing relief.” Polishing relief is the term for ripples that form in a polished surface.

The Bottom Line

To complete a metallographic process, each of its phases must be done with accuracy. This is why investing in high-quality metallography consumables that do the job is a good start. With the right materials and specimen-handling skills, metallography can be a breeze.

You may request your metallography consumables catalogue from North American industry leaders such as NextGen Material Testing, Inc.
