 Preparation of metallographic samples is an important step in material analysis, especially when dealing with porous materials such as ceramics, minerals, and composite structures. However, many traditional methods have difficulty addressing the unique challenges presented by these materials, such as sealing microcracks and cavities that compromise the quality of the results.

A vacuum impregnation system such as the GenVac MP Series is ideal for such applications. These systems offer laboratories and researchers the precision they require for consistent, reliable sample preparation by combining advanced engineering with user-friendly design. It is the purpose of this article to describe how the GenVac MP Series redefines epoxy mounting, thereby becoming indispensable for modern metallography.

Precision Mounting at its Finest with GenVac MP Series Vacuum Impregnation System

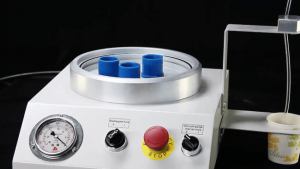

GenVac MP Series - Epoxy Mounting Vacuum Impregnation System for Metallographic Sample PreparationThe GenVac MP Series Epoxy Mounting Vacuum Impregnation System is designed to address the unique challenges of metallographic sample preparation, especially for porous materials like rocks, minerals, ceramics, electronic circuit boards, and composites. With a combination of precision, ease of use, and durability, this system offers reliable and consistent impregnation results.

Let’s take a look at some of its main features:

  • Transparent Lid: The 6.3-inch (16 cm) diameter transparent lid provides a clear view during the impregnation process, allowing precise monitoring and adjustment.

  • Removable Lid and Sample Cup Holder: The lid is fully removable, exposing the vacuum chamber bed for easy positioning and handling of samples. The integrated disposable sample cup holder further simplifies the impregnation process.

  • User-Friendly Interface: Operated via a simple control panel on the front of the unit, the system is easy to use without extensive training.

  • Separate Vacuum Pump: The 180W motor-powered vacuum pump ensures efficient and consistent vacuum pressure, delivering optimal impregnation results.

  • Compact Design: Measuring 18.9 x 15.75 x 15.75 inches (48 x 40 x 40 cm) and weighing 75 lbs (34 kg), the GenVac MP Series fits easily into laboratories without taking up excessive space.

  • Non-Proprietary Parts: Built with standard components, replacement parts can easily be sourced from local suppliers, resulting in long-term usability and cost savings.

Various Applications of the GenVac MP Series Vacuum Impregnation System

The GenVac MP Series stands out for its ability to adapt to the unique demands of numerous materials, which makes it an ideal solution for professionals across multiple industries. From geological specimens to advanced composites and delicate electronics, this system offers precise impregnation, sealing imperfections, and increasing material stability.

Below, we explore how our vacuum impregnation system is particularly effective at preparing different materials for detailed analysis and research.

Rocks and Minerals

Porous geological samples often contain microcracks and voids that distort analytical results. The GenVac MP Series seals these imperfections, providing accurate and reliable structural analyses. Geologists and researchers interested in mineral compositions and rock formations will find it a valuable tool.

Ceramics and Composite Materials

Ceramics and composites are frequently used in advanced industries such as aerospace and electronics. These materials often feature intricate structures with pores and tiny defects. The vacuum impregnation system efficiently impregnates these challenging materials, further increasing their stability for detailed examinations.

Electronic Circuit Boards

Modern electronic devices require meticulous circuit board inspection. The GenVac MP Series prevents damage to delicate components by sealing gaps and achieving a smooth epoxy coating. This guarantees better reliability and precision during quality control processes.

Advanced Research and Development

Whether in academic research labs or industrial R&D facilities, the vacuum impregnation system supports cutting-edge studies. Its ability to handle diverse materials easily makes it a valuable asset for exploring novel materials and manufacturing techniques.

Compliance and Reliability You Can Trust

The GenVac MP Series is built to meet the highest industry standards with a commitment to quality and reliability. Equipped with NIST-certified consumables, this system guarantees consistent results, giving professionals confidence in every sample prepared. Its compliance with stringent metallographic preparation standards provides a trustworthy option for laboratories aiming to maintain precision and compliance in their processes.

Designed for longevity, the GenVac MP Series uses non-proprietary parts, allowing users to source replacements locally. This not only reduces downtime but also guarantees that the system remains operational for years to come. With readily available consumables and spare parts, maintaining equipment is both efficient and cost-effective, even in demanding environments.

Advantages for Laboratories and Researchers

As we already mentioned, the GenVac MP Series offers significant advantages for laboratories and researchers by optimizing operations and offering high-quality results. Its intuitive design minimizes setup time, allowing users to focus on precision rather than equipment complexity. This efficiency translates directly into increased productivity, as samples can be prepared faster and with fewer interruptions.

One of the key benefits is its cost-effectiveness. The use of durable construction and non-proprietary components allows operational expenses to remain manageable. Laboratories can maintain their workflow without incurring excessive costs for replacement parts or specialized consumables.

NextGen’s exceptional lifetime support adds to its appeal. This commitment makes certain that users always have access to expert assistance, whether they require troubleshooting, operation guidance, or advice on optimizing their processes.

A Trusted Solution for Modern Metallography

From sealing microcracks in geological samples to optimizing ceramic and composite stability, the GenVac MP Series has proven its value over a broad spectrum of applications. Its user-friendly design, compliance with industry standards, and cost-effective operation contribute to its key status for laboratories and researchers aiming for the highest material analysis standards.

By combining advanced engineering with practical features, this vacuum impregnation system redefines what a vacuum impregnation system can achieve.

If you have additional questions about the GenVac MP Series or need assistance selecting the most suitable solution for your laboratory, feel free to contact us directly or request an online quote. Our team is ready to help you make the correct choice for your needs.
