The NBS Abrasion Tester: What You Need to Know

2 December 2021 | Rubber Testing Equipment

Request Quote

Also known as an NBS abrasion testing machine, an NBS abrasion tester is a professionally-designed equipment specifically intended to determine the amount of resistance to abrasion possessed by vulcanized rubber, as well as other similar materials that are commonly used in the heels and soles of footwear. The equipment is particularly useful for materials that are more than 2.5 mm thick.

It is generally accepted that when making a comparison between different kinds of rubber materials, the service performance may not directly correlate to the predictive test’s results. The test method must not be used to measure the abrasion resistance for materials with compositions that have a marked difference from the reference compound standard.

The results may be misleading when, for instance, comparing polyurethane compositions with the reference compound standard.

Certified North American NBS Abrasion Tester — 3 Load Set NBS Abrasion Tester

In general, there are two abrasion types. These are sliding and impingement. It is sliding abrasion when the adjacent surface passes across the rubber surface. On the other hand, impingement abrasion is characterized by sand particles that hit the surface when the rubber wears off. In actual service, most of the wear happens as a combination of the two types of abrasion.

Localized or restricted friction forces can inflict high levels of energy when sliding on the rubber. When the rubber is unable to withstand such forces, abrasion and wear take place.

Impingement by particles happen in various applications such as rebound plates, sandblast hose, and chutes. Elastomers can easily yield, and then distribute the stress from particle impingement. In a sandblast test, there will be a 90-degree impingement angle. Resilient and soft rubber has more abrasion resistance compared to either cast iron or steel. However, you cannot use just any kind of elastomer. However, under exactly the same conditions, tough tire tread will more rapidly wear out compared to a soft type of elastomer. The particle impingement’s angle has a substantial effect on the type of material to be used. When the angle goes below 90 degrees, the advantage of elastomers over hard metals will decline and eventually disappear.

NBS Abrasion Tester on Vulcanized Rubber for Shoes

NBS Abrasion Tester on Vulcanized Rubber for Car Mats

It can be difficult to correlate abrasions tests done in a laboratory to end-use applications. The measurement of properties will be helpful in the choice of materials. However, it is not recommended to compare to the rates in actual service as it could be thousands of times bigger as regards to temperatures and velocities.

At least 25 lab abrasion test devices are available. This is a clear indication that this kind of testing is not easy to correlate to service performance. In the rubber industry, the most widely accepted test device is the National Bureau of Standards (NBS) Abrader. It is a slinging type of abrader. The NBS abrader employs constant velocity, and uses a specified abrasive grit under a fixed load.

NBS Abrasion Tester on Vulcanized Rubber for tires

NBS Abrasion Tester on Vulcanized Rubber for PVC pipes

It will not show how a particular compound will perform under widely fluctuating conditions. Neither will it give any indications about the material’s cut resistance, flat spotting, or chunking.

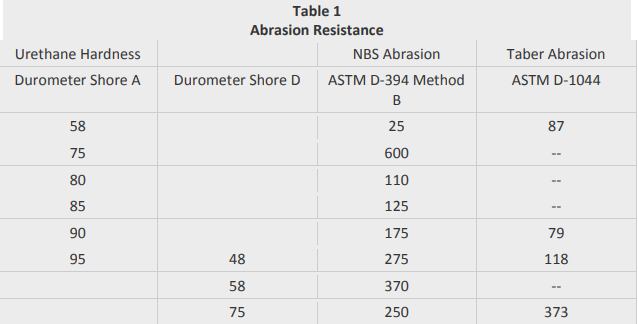

The results of the abrasion resistance test of vulcanizates of urethane, as measured using two lab tests, the NBS test as well as the Abrader are illustrated in the table below:

NBS Abrasion Technical Specification Chart

Take note that the two tests resulted to different values. However, there is an explanation for the variances in the performance of the vulcanizates of urethane. The NBS testing is a simulation of a very harsh service condition. In this particular case, the hardest among the volcanizates are able to hold up best.

On the other hand, the test is a much less punishing type of test. The softer compounds showed better performance compared to the harder materials because they have more resilience and “give” when under load.

The sliding abrasion resistance increases with the increase in hardness for the NBS testing. The 75A durameter vulcanizate had an unusually high NBS Index. This is probably because of the abrasive wheels lubrication by the plasticizer that was used in the compound.

With the increase in the hardness of urethane, there was a corresponding increase in NBS values for non-plasticized compounds as well.

There is no doubt that getting meaningful values from laboratory abrasion tests is quite difficult. Despite this, however, urethane is considered as having superior sliding abrasion resistance. It performed very well in numerous applications where wear is considered an issue. In the tests, urethane has consistently outworn the conventional plastic and rubber materials, typically by a factor of as high as 8 to 1.

NBS Rubber Abrasion Tester Standards

As mentioned, the NBS abrasion tester is a machine used for testing the abrasion resistance levels of vulcanized rubber and other similar rubber compounds. The system is most commonly in accordance with ASTM D1630 and ASTM D394 standards. Common applications include the heels and soles of footwear. A typical model is equipped with an intelligent system for power failure recovery. It performs the measurements through the volumetric specimen loss when exposed to movements from a normalized abrasive medium attached to a rotations cylinder.

Typical Specifications of an NBS Rubber Abrasion Tester

Following are the specifications of a typical NBS abrasion testing machine:
Specimen Used – 3 sets, with measurements of 25.4 x 25.4 x 6.35 mm
Load – 2265 g, 3 sets
Rotation Speed – 45±5 rpm
Counter – LCD 0 to 999.999
Suction – 2 kg/cm2
Dimension – W: 55 x D: 30 x H: 50 cm
Grinding Paper – America grit #40
Power – 110V/60 Hz or 220 V/50 Hz
Weight – 70 kg

Frequently Asked Questions about the NBS Abrasion Tester

Below are the most frequently asked questions about the NBS abrasion testing machine, and their answers. Hopefully, you can find the answers to some of the questions you have in mind.

Q: What are the applications not appropriate for NBS abrasion testing?
A: Not all rubber materials can be tested using the NBS abrasion tester. For one, the machine is not suitable for use for thin polyurethane materials. When the material is exposed to the NBS tester’s higher abrasion levels, it will result to wearing through after only a small number of short revolutions. The known benchmark for materials appropriate for use with the NBS abrasion testing machine is vulcanized rubber’s hardness.

Q: How will the NBS testing machine fare when compared to a DIN abrasion tester?
A: The NBS testing machine is ideally used for testing thicker materials. A more abrasive sheet attached to the rotating drum is used to expose the rubber material to more intense revolutions. As a result, the evaluation of wear is achieved faster compared to the results obtained from testing using a DIN abrasion testing machine.

Q: What are the materials most commonly tested using the NBS abrasion tester?
A: The most common test materials for the NBS abrasion testing method are vulcanized rubbers that are a fixture in the footwear industry. To be specific, these materials are used for heels and soles of shoes and other footwear.

Q: What are the requirements for materials used as specimen for the NBS abrasion testing machine?
A: There must be three reference compounds as well as a new reference compound used for testing. The original reference compound standard must be 8 inches long and 1 inch wide. Laboratories cut the material to the standard size specifically for rubber abrasion testing.

The standard reference compound size should measure 1 x 1 x 0.25 inch. The specimen must be of this size in order to fit into the NBS abrasion testing machine’s arm slot.

If a specimen is over the standard thickness, it will require buffing until it is reduced to the appropriate size. On the other hand, thinner specimens should be stacked or piled in layers until the required thickness is achieved.

The new reference compound must have been stored during the past six months prior to the scheduled testing. A compound that has been stored for more than six months is not qualified to be used as specimen for the test.

Also, the reference compound must undergo a curing process before the test. This is necessary to make sure that the material will get an even abrasion. The compound reference is cured at a pre-determined temperature.

There is likewise a breach in the compound used for conditioning the new abrasive paper. This break has similar dimensions to the standard reference compound.

Q: What principle is behind the NBS abrasion testing method?
A: The NBS testing machine employs a test specimen that is abraded against a rotating drum that is covered in abrasive materials. A weight is put in place to pull the specimen towards the drum with the use of a consistent force. The testing machine operator gauges the strength of the material by assessing the remaining volume after a test cycle.

Q: What unique advantage does the NBS abrasion test method have over other similar testing methods?
A: Although the NBS abrasion test machine applies the same principle as other rubber abrasion testing machines, the NBS method is designed specifically to test materials that fall under a thickness level not lower than 2.5 mm.

Q: How is NBS abrasion testing done?
A: During testing, technicians follow the ASTM D1630 abrasion standard guidelines.

First, the technician unlocks a bridge holding the gauges. The bridge is then lifted to allow the arms to swing backwards for mounting of the specimen. Each compound is then mounted and secured in the slots.

The operator lowers the arms to the metallic drums. The bridge is lowered and locked in place, with a calibration weight on every arm. The technician likewise calibrates the gauges, then sets the test’s number of revolutions. Finally, the operator presses the button to start the abrasion testing.

Prior to the actual testing, the equipment is given a break in run to allow the conditioning of the new abrasive paper. Garnet paper with #40 grit is used for the test. It can be used for 18 runs.

The abrader makes 500 revolutions employing break in compounds. It makes a second run of another 500 revolutions. Standard reference compounds are used for the second run. The compounds are discarded after the runs.

In the actual run, the new reference compound is used together with the previous three compounds. The four compounds then undergo four passes. Each pass tests three compounds.

The first pass if for testing the three previous reference compounds. The second pass is for the first two reference compounds along with the new compound. The third pass is for the third, together with the new compound as well as the first compound. The final pass is for testing the new compound, and the second and third reference compounds.

The operator runs the NBS tester until the compounds’ surface matches the drum’s shape. The gauges and revolution counter is set to zero. The operator then restarts the tester.

The tester runs until it 0.1 inch is scraped off from the compounds. The gauges indicate the amount of the material scraped off. The technician logs the readings and number of revolutions from each gauge. He then computes the number of revolutions required to abrade 0.1 inch from all compounds.

The tester needs another run, this time with new standard reference compounds. The reference compounds are then removed and a new compound is mounted on the arms.

The machine will stop from running when it has abraded 0.1 inch off the fresh set of specimens. The operator gets the values from the initial two runs in the latest computation.
