Specialized Accessories for Unique and Complex Testing Applications
NextGen Material Testing Inc. provides a comprehensive selection of specialized grips and fixtures engineered for advanced testing applications that extend beyond traditional tensile and compression methods. Designed for seamless integration with our universal testing machines (UTM), these solutions enable testing of plastic films, non-woven materials, geotextiles, buckles, eyes, and other unique configurations requiring precise alignment and force application.
Our other grips and fixtures collection meets critical global testing standards, including ASTM D624, ASTM D1004, ISO 34, ISO 3303, and DIN equivalents. They allow reliable data collection for shear strength, puncture resistance, tear propagation, and peeling forces, among others.
These accessories help laboratories, research institutions, and quality control departments expand the capabilities of their NextGen UTMs across numerous industries, from packaging to construction textiles.
NGB502A – Side Action Grip
The NGB502A Side Action Grip is designed for low-force tensile and tear tests, specifically targeting sponge samples and footwear components such as soles and uppers. Its adaptable jaw configuration allows for accurate gripping of various sample types. This compact grip is compatible with standard 10 mm pin-type universal testing machines and supports ambient condition testing for soft and elastic materials.
- Application: Tension test of sponge samples and tear test of shoe soles and uppers.
- Maximum Capacity: ≤ 500 N load.
- Weight: 1 kg (upper grip), 1 kg (lower grip).
- Dimensions: Height – 250 mm; Width – 100 mm.
- Working Temperature: Ambient.
- Connection Type: Φ10 mm pin (upper and lower grips).
- Jaw Face Width (Sponge Specimen): 30 mm.
- Jaw Face Width (Shoe Upper): 40 mm.
Technical Specifications – NGB502A Side Action Grip
| Parameter | Specification |
|---|---|
| Application | Tension test of sponge sample and tear test of sole and upper of shoe |
| Maximum Force Capacity | ≤ 500 N |
| Weight | Upper Grip: 1 kg Lower Grip: 1 kg |
| Working Temperature | Ambient |
| Connection Type | Upper Grip: Φ10 mm pin Lower Grip: Φ10 mm pin |
| Height (A) | 250 mm |
| Width (B) | 100 mm |
| Jaw Face Width (Sponge Specimen) | 30 mm |
| Jaw Face Width (Shoe Upper) | 40 mm |

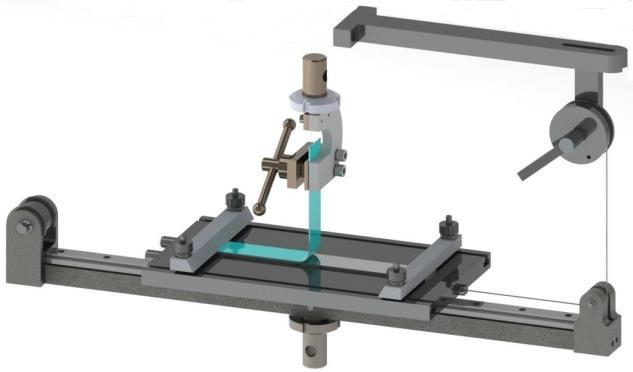

NGA502A – 90° Peeling Fixture
The NGA502A 90° Peeling Fixture is designed for the determination of peel adhesion strength of adhesive tapes. This fixture complies with GB/T 2792 and ISO 29862 standards and is suitable for low-force peel testing up to 500 N. It features a stable base and pin-mounted grips for accurate and repeatable adhesion measurements in ambient conditions.
- Application: Determination of peel adhesion properties for adhesive tapes.
- Maximum Capacity: ≤ 500 N load.
- Weight: 3.66 kg.
- Working Temperature: Ambient.
- Standards: GB/T 2792, ISO 29862.
- Connection Type: Φ10 mm pin (upper and lower grips).
- Height: 92 mm (upper grip), 106 mm (lower grip).
- Base Dimensions: Length – 520 mm; Width – 140 mm.

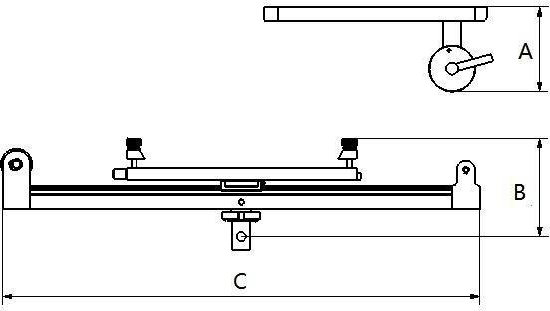

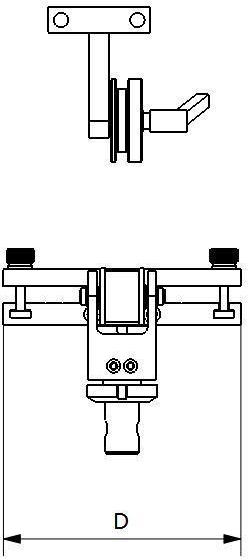

Technical Specifications – NGA502A 90° Peeling Fixture
| Parameter | Specification |
|---|---|
| Application | Determination of peel adhesion properties for adhesive tapes |
| Maximum Force Capacity | ≤ 500 N |
| Weight | 3.66 kg |
| Working Temperature | Ambient |
| Standard | GB/T 2792, ISO 29862 |
| Connection Type | Upper Grip: Φ10 mm pin Lower Grip: Φ10 mm pin |
| Height (A/B) | Upper Grip: 92 mm Lower Grip: 106 mm |
| Base Length (C) | 520 mm |
| Base Width (D) | 140 mm |

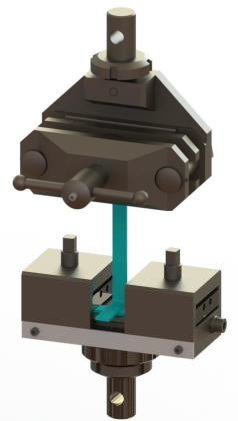

NGB103A – Peeling Fixture
The NGB103A Peeling Fixture is developed for conducting peeling tests on geogrid materials in accordance with the JTG E50 standard. With its dual-grip design and compatibility with Φ10 mm pin mounts, this fixture provides a stable platform for low-force peel tests up to 1 kN. It is ideal for quality control and research applications in geosynthetics testing environments.
- Application: Peeling test for geogrid materials.
- Maximum Capacity: ≤ 1 kN load.
- Weight: 2.23 kg (upper grip), 2.29 kg (lower grip).
- Working Temperature: Ambient.
- Standard: JTG E50.
- Connection Type: Φ10 mm pin (upper and lower grips).
- Height: 110 mm (upper grip), 106 mm (lower grip).
- Grip Length: 140 mm.
- Width: 124 mm (upper grip), 54 mm (lower grip).

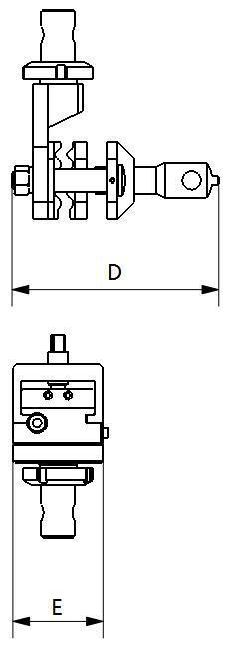

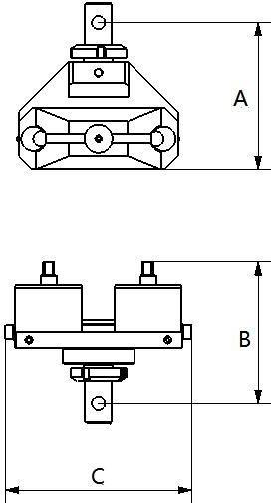

Technical Specifications – NGB103A Peeling Fixture
| Parameter | Specification |
|---|---|
| Application | Peeling test for geogrid |
| Maximum Force Capacity | ≤ 1 kN |
| Weight | Upper Grip: 2.23 kg Lower Grip: 2.29 kg |
| Working Temperature | Ambient |
| Standard | JTG E50 |
| Connection Type | Upper Grip: Φ10 mm pin Lower Grip: Φ10 mm pin |
| Height (A/B) | Upper Grip: 110 mm Lower Grip: 106 mm |
| Grip Length (C) | 140 mm |
| Width (D/E) | Upper Grip: 124 mm Lower Grip: 54 mm |

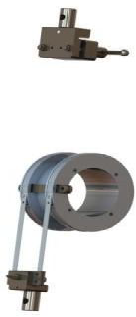

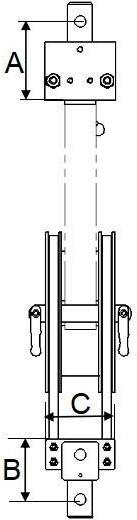

NGG103A – Climbing Drum Peel Test Fixture
The NGG103A Climbing Drum Peel Test Fixture is used to determine the peel resistance of sandwich structures, especially those involving bonded joints. This fixture is compliant with GB/T 17748 and operates under low-force conditions in ambient environments. Its lightweight construction and Φ10 mm pin mounting make it suitable for small-scale, precise adhesion testing applications.
- Application: Determination of the peel resistance of sandwich structures.
- Maximum Capacity: ≤ 1 kN load.
- Weight: 0.8 kg (upper grip), 0.3 kg (lower grip).
- Working Temperature: Ambient.
- Standard: GB/T 17748.
- Connection Type: Φ10 mm pin (upper and lower grips).
- Height: 67 mm (upper grip), 47.5 mm (lower grip).
- Width: 30 mm.
Technical Specifications – NGG103A Climbing Drum Peel Test Fixture
| Parameter | Specification |
|---|---|
| Application | Determination of the peel resistance of sandwich structures |
| Maximum Force Capacity | ≤ 1 kN |
| Weight | Upper Grip: 0.8 kg Lower Grip: 0.3 kg |
| Working Temperature | Ambient |
| Standard | GB/T 17748 |
| Connection Type | Upper Grip: Φ10 mm pin Lower Grip: Φ10 mm pin |
| Height (A/B) | Upper Grip: 67 mm Lower Grip: 47.5 mm |
| Width (C) | 30 mm |

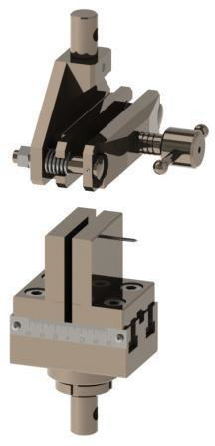

NGA502A – Tear Fixture
The NGA502A Tear Fixture is designed for tear testing of waterproof roll materials in ambient conditions. Built according to GB/T 328.18 standards, this fixture supports low-force testing up to 500 N and provides reliable grip and alignment via standard Φ10 mm pin connections. Its durable dual-grip structure ensures consistent specimen holding and accurate tear strength evaluation.
- Application: Tear test for waterproof roll materials.
- Maximum Capacity: ≤ 500 N load.
- Weight: 2.1 kg (upper grip), 3.0 kg (lower grip).
- Working Temperature: Ambient.
- Standard: GB/T 328.18.
- Connection Type: Φ10 mm pin (upper and lower grips).
- Height: 97 mm (upper grip), 145 mm (lower grip).
- Width: 140 mm.

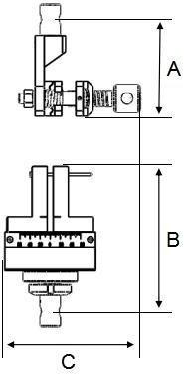

Technical Specifications – NGA502A Tear Fixture
| Parameter | Specification |
|---|---|
| Application | Tear test for waterproof roll |
| Maximum Force Capacity | ≤ 500 N |
| Weight | Upper Grip: 2.1 kg Lower Grip: 3.0 kg |
| Working Temperature | Ambient |
| Standard | GB/T 328.18 |
| Connection Type | Upper Grip: Φ10 mm pin Lower Grip: Φ10 mm pin |
| Height (A/B) | Upper Grip: 97 mm Lower Grip: 145 mm |
| Width (C) | 140 mm |

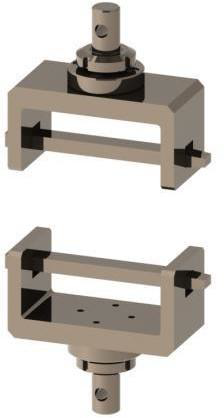

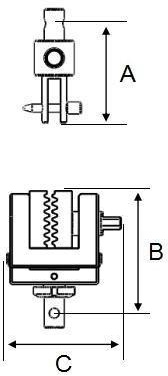

NGA204A – Tensile Grip of Eyes Open Buckle
The NGA204A Tensile Grip of Eyes Open Buckle is designed for tension testing of safety nets, including open-buckle eye loop configurations. Built in compliance with GB/T 5725-2009, this grip system handles forces up to 20 kN under ambient conditions. Its reinforced lower grip construction ensures stability for high-strength materials, while standard Φ10 mm pin connections enable easy integration with universal testing machines.
- Application: Tension test for safety nets.
- Maximum Capacity: ≤ 20 kN load.
- Weight: 1 kg (upper grip), 13 kg (lower grip).
- Working Temperature: Ambient.
- Standard: GB/T 5725-2009.
- Connection Type: Φ10 mm pin (upper and lower grips).
- Height: 101 mm (upper grip), 125 mm (lower grip).
- Width: 125 mm.
Technical Specifications – NGA204A Tensile Grip of Eyes Open Buckle
| Parameter | Specification |
|---|---|
| Application | Tension test for safety nets |
| Maximum Force Capacity | ≤ 20 kN |
| Weight | Upper Grip: 1 kg Lower Grip: 13 kg |
| Working Temperature | Ambient |
| Standard | GB/T 5725-2009 |
| Connection Type | Upper Grip: Φ10 mm pin Lower Grip: Φ10 mm pin |
| Height (A/B) | Upper Grip: 101 mm Lower Grip: 125 mm |
| Width (C) | 125 mm |

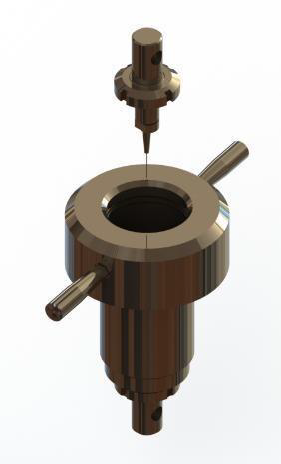

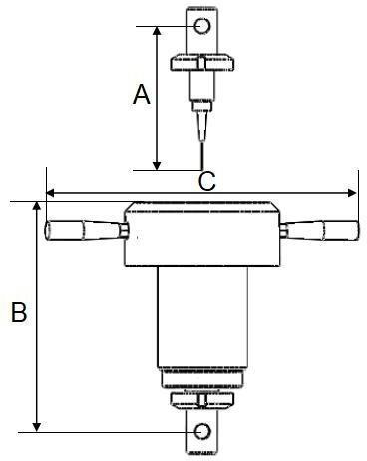

NGP502A – Puncture Fixture of Plastic Film
The NGP502A Puncture Fixture of Plastic Film is designed for precise measurement of puncture resistance in plastic films. Compliant with GB/T 21302-2007, this fixture is optimized for low-force testing in ambient conditions. It features a 1 mm diameter probe and a 50 mm inner diameter ring to accurately simulate puncture conditions, providing highly repeatable test results for thin plastic specimens.
- Application: Determination of puncture resistance properties of plastic film.
- Maximum Capacity: ≤ 500 N load.
- Weight: 0.21 kg (upper grip), 3.07 kg (lower grip).
- Working Temperature: Ambient.
- Standard: GB/T 21302-2007.
- Connection Type: Φ10 mm pin (upper and lower grips).
- Height: 100 mm (upper grip), 155 mm (lower grip).
- Width: 215 mm.
- Inner Diameter: Φ50 mm.
- Probe Diameter: Φ1 mm.
Technical Specifications – NGP502A Puncture Fixture of Plastic Film
| Parameter | Specification |
|---|---|
| Application | Determination of puncture resistance properties of plastic film |
| Maximum Force Capacity | ≤ 500 N |
| Weight | Upper Grip: 0.21 kg Lower Grip: 3.07 kg |
| Working Temperature | Ambient |
| Standard | GB/T 21302-2007 |
| Connection Type | Upper Grip: Φ10 mm pin Lower Grip: Φ10 mm pin |
| Height (A/B) | Upper Grip: 100 mm Lower Grip: 155 mm |
| Width (C) | 215 mm |
| Inner Diameter | Φ50 mm |
| Probe Diameter | Φ1 mm |

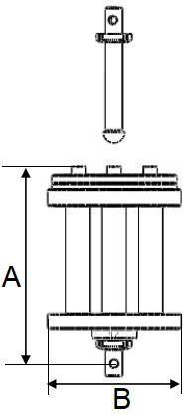

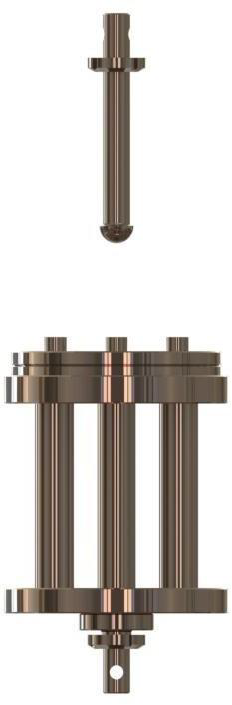

NGP103A – Puncture Fixture of Non-Woven Fabric
The NGP103A Puncture Fixture of Non-Woven Fabric is designed to determine the bursting strength of textile materials, including non-woven fabrics. Conforming to GB/T 19976-2005, this fixture operates in ambient environments and supports loads up to 1 kN. It is equipped with interchangeable probes for multiple test scenarios and offers secure Φ10 mm pin connections for universal testing machine compatibility.
- Application: Determination of bursting strength of textiles and non-woven fabric materials.
- Maximum Capacity: ≤ 1 kN load.
- Weight: 10 kg.
- Working Temperature: Ambient.
- Standard: GB/T 19976-2005.
- Connection Type: Φ10 mm pin (upper and lower grips).
- Height: 250 mm.
- Width: 160 mm.
- Probe Options: Φ25 mm, Φ38 mm.
Technical Specifications – NGP103A Puncture Fixture of Non-Woven Fabric
| Parameter | Specification |
|---|---|
| Application | Determination of bursting strength of textiles |
| Maximum Force Capacity | ≤ 1 kN |
| Weight | 10 kg |
| Working Temperature | Ambient |
| Standard | GB/T 19976-2005 |
| Connection Type | Upper Grip: Φ10 mm pin Lower Grip: Φ10 mm pin |
| Height (A) | 250 mm |
| Width (B) | 160 mm |
| Probe Diameter | Φ25 mm, Φ38 mm |

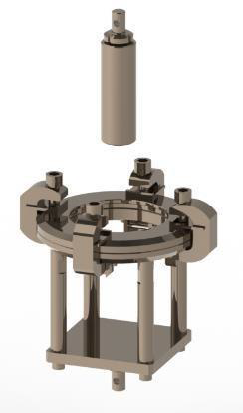

NGP503A – Puncture Fixture of Geotextiles
The NGP503A Puncture Fixture of Geotextiles is designed for the accurate determination of puncture resistance properties in geotextile materials. Compliant with GB/T 14800-2010 and ISO 12236, this fixture supports up to 5 kN of load and operates in ambient conditions. With dual plunger and inner diameter options, it enables standardized testing for a wide range of geotextile product types.
- Application: Determination of puncture resistance properties of geotextiles.
- Maximum Capacity: ≤ 5 kN load.
- Weight: 2.4 kg (upper grip), 15 kg (lower grip).
- Working Temperature: Ambient.
- Standards: GB/T 14800-2010, ISO 12236.
- Connection Type: Φ10 mm pin (upper and lower grips).
- Height: 175 mm (upper grip), 290 mm (lower grip).
- Width: 282 mm.
- Inner Diameter Options: Φ150 mm, Φ50 mm.
- Plunger Options: Φ50 mm, Φ8 mm.

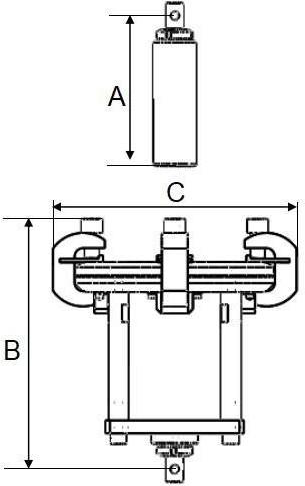

Technical Specifications – NGP503A Puncture Fixture of Geotextiles
| Parameter | Specification |
|---|---|
| Application | Determination of puncture resistance properties of geotextiles |
| Maximum Force Capacity | ≤ 5 kN |
| Weight | Upper Grip: 2.4 kg Lower Grip: 15 kg |
| Working Temperature | Ambient |
| Standard | GB/T 14800-2010, ISO 12236 |
| Connection Type | Upper Grip: Φ10 mm pin Lower Grip: Φ10 mm pin |
| Height (A/B) | Upper Grip: 175 mm Lower Grip: 290 mm |
| Width (C) | 282 mm |
| Inner Diameter | Φ150 mm, Φ50 mm |
| Plunger Diameter | Φ50 mm, Φ8 mm |

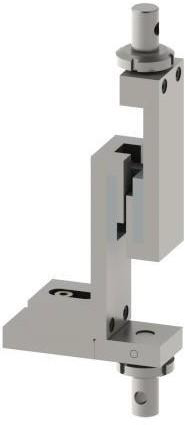

NGA203A – Shear Fixture
The NGA203A Shear Fixture is designed for evaluating the shear performance of silicone sealants under controlled conditions. Built to meet the JGT 475-2015 standard, the fixture accommodates medium-force testing up to 2 kN and offers a wide working temperature range for reliable results in both cold and hot environments. Its dual Φ10 mm pin connections ensure secure integration with universal testing machines.
- Application: Shear test for silicone sealants.
- Maximum Capacity: ≤ 2 kN load.
- Weight: 1 kg (upper grip), 2 kg (lower grip).
- Working Temperature: -20°C to +80°C.
- Standard: JGT 475-2015.
- Connection Type: Φ10 mm pin (upper and lower grips).
- Height: 168 mm (upper grip), 184 mm (lower grip).
- Width: 111 mm.
Technical Specifications – NGA203A Shear Fixture
| Parameter | Specification |
|---|---|
| Application | Shear test for silicone sealants |
| Maximum Force Capacity | ≤ 2 kN |
| Weight | Upper Grip: 1 kg Lower Grip: 2 kg |
| Working Temperature | -20°C to +80°C |
| Standard | JGT 475-2015 |
| Connection Type | Upper Grip: Φ10 mm pin Lower Grip: Φ10 mm pin |
| Height (A/B) | Upper Grip: 168 mm Lower Grip: 184 mm |
| Width (C) | 111 mm |
NGA203D – Tensile Grip
The NGA203D Tensile Grip is specifically designed for tension testing of welded joints in steel wire, following GB/T 33281-2016 and GB/T 26941.3 standards. Compact and lightweight, it operates under ambient conditions and supports forces up to 2 kN. The grip is ideal for small-diameter specimens ranging from Φ0.5 mm to Φ5 mm, offering reliable alignment and precision holding for consistent test results.
- Application: Tension test for welded joints of steel wire.
- Maximum Capacity: ≤ 2 kN load.
- Weight: 1 kg (upper grip), 1 kg (lower grip).
- Working Temperature: Ambient.
- Standards: GB/T 33281-2016, GB/T 26941.3.
- Height: 150 mm (A), 40 mm (B).
- Specimen Diameter Compatibility: Φ0.5–Φ5 mm.
Technical Specifications – NGA203D Tensile Grip
| Parameter | Specification |
|---|---|
| Application | Tension test for welded joint of steel wire |
| Maximum Force Capacity | ≤ 2 kN |
| Weight | Upper Grip: 1 kg Lower Grip: 1 kg |
| Working Temperature | Ambient |
| Standard | GB/T 33281-2016, GB/T 26941.3 |
| Height (A) | 150 mm |
| Height (B) | 40 mm |
| Specimen Diameter | Φ0.5–Φ5 mm |
NGB104A – Shear Fixture
The NGB104A Shear Fixture is developed for conducting shear strength testing on aluminum-plastic composite panels. Built in accordance with GB/T 17748, it is optimized for low- to mid-force applications up to 10 kN under ambient conditions. This fixture supports precise clamping and is suitable for specimens with longitudinal lengths under 100 mm, making it ideal for construction and façade material evaluation.
- Application: Shear test for aluminium-plastic composite panels.
- Maximum Capacity: ≤ 10 kN load.
- Weight: 3.9 kg.
- Working Temperature: Ambient.
- Standard: GB/T 17748.
- Height: 107 mm (A), 102 mm (B).
- Specimen Size: Longitudinal length ≤ 100 mm.
Technical Specifications – NGB104A Shear Fixture
| Parameter | Specification |
|---|---|
| Application | Shear test for aluminium-plastic composite panel |
| Maximum Force Capacity | ≤ 10 kN |
| Weight | 3.9 kg |
| Working Temperature | Ambient |
| Standard | GB/T 17748 |
| Height (A) | 107 mm |
| Height (B) | 102 mm |
| Specimen Size | Longitudinal length ≤ 100 mm |

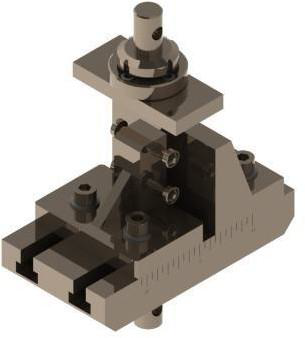

NGB104B – Compression Shear Fixture
The NGB104B Compression Shear Fixture is designed for evaluating the shear strength of adhesives used in ceramic tile applications. Built in accordance with JC/T547-2005, this fixture handles forces up to 10 kN in ambient conditions. Its solid lower grip and lightweight upper component ensure stable performance for material bonding evaluation. The fixture integrates easily with standard universal testing machines via Φ10 mm pin mounts.
- Application: Compression shear test for adhesives of ceramic tiles.
- Maximum Capacity: ≤ 10 kN load.
- Weight: 0.8 kg (upper grip), 7 kg (lower grip).
- Working Temperature: Ambient.
- Standard: JC/T547-2005.
- Connection Type: Φ10 mm pin (upper and lower grips).
- Height: 55 mm (upper grip), 145 mm (lower grip).
- Width: 180 mm.

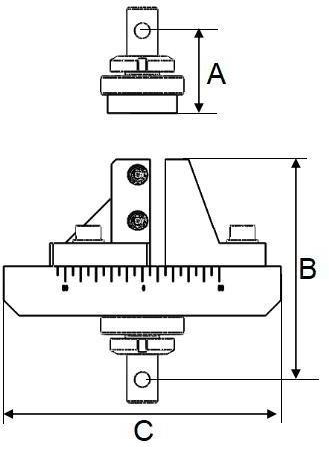

Technical Specifications – NGB104B Compression Shear Fixture
| Parameter | Specification |
|---|---|
| Application | Compression shear test for adhesives of ceramic tiles |
| Maximum Force Capacity | ≤ 10 kN |
| Weight | Upper Grip: 0.8 kg Lower Grip: 7 kg |
| Working Temperature | Ambient |
| Standard | JC/T547-2005 |
| Connection Type | Upper Grip: Φ10 mm pin Lower Grip: Φ10 mm pin |
| Height (A/B) | Upper Grip: 55 mm Lower Grip: 145 mm |
| Width (C) | 180 mm |

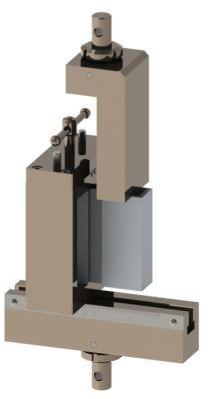

NGB204A – Longitudinal Shear Fixture
The NGB204A Longitudinal Shear Fixture is engineered for testing the shear strength of aluminum alloy thermal barrier profiles. Built according to GB/T 28289-2012, it supports forces up to 20 kN and is ideal for quality control and structural performance evaluation in ambient environments. The fixture features robust pin connections and accommodates specimens with longitudinal lengths up to 100 mm.
- Application: Shear test for aluminum alloy thermal barrier profiles.
- Maximum Capacity: ≤ 20 kN load.
- Weight: 3 kg (upper grip), 6.5 kg (lower grip).
- Working Temperature: Ambient.
- Standard: GB/T 28289-2012.
- Connection Type: Φ10 mm pin (upper and lower grips).
- Height: 168 mm (upper grip), 269 mm (lower grip).
- Width: 190 mm.
- Specimen Size: Longitudinal length ≤ 100 mm.

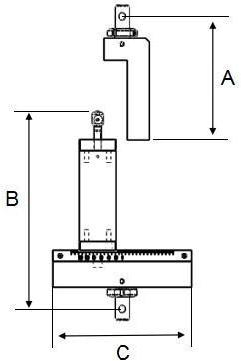

Technical Specifications – NGB204A Longitudinal Shear Fixture
| Parameter | Specification |
|---|---|
| Application | Shear test for aluminum alloy thermal barrier profiles |
| Maximum Force Capacity | ≤ 20 kN |
| Weight | Upper Grip: 3 kg Lower Grip: 6.5 kg |
| Working Temperature | Ambient |
| Standard | GB/T 28289-2012 |
| Connection Type | Upper Grip: Φ10 mm pin Lower Grip: Φ10 mm pin |
| Height (A/B) | Upper Grip: 168 mm Lower Grip: 269 mm |
| Width (C) | 190 mm |
| Specimen Size | Longitudinal length ≤ 100 mm |

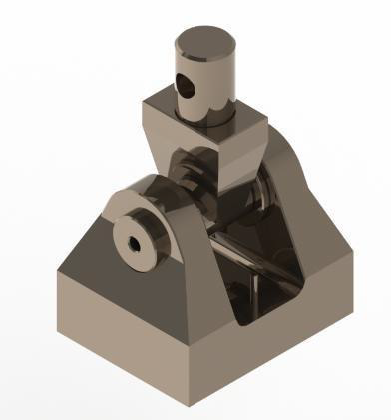

NGB105A – Shear Fixture
The NGB105A Shear Fixture is designed for high-force shear testing of steel wire and rope. With a maximum force capacity of 100 kN, this robust fixture is suitable for industrial applications requiring precise evaluation of wire and rope shear performance. Compatible with Φ10 mm pin connections, it supports a range of specimen diameters including Φ4, Φ5, Φ6, and Φ8 mm under ambient conditions.
- Application: Shear test for steel wire and rope.
- Maximum Capacity: ≤ 100 kN load.
- Weight: 1.69 kg (upper grip), 10.63 kg (lower grip).
- Working Temperature: Ambient.
- Connection Type: Φ10 mm pin (upper and lower grips).
- Height: 97 mm (upper grip), 145 mm (lower grip).
- Width: 150 mm.
- Specimen Size Compatibility: Φ4, Φ5, Φ6, Φ8 mm.

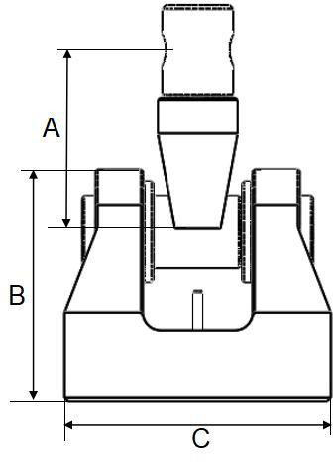

Technical Specifications – NGB105A Shear Fixture
| Parameter | Specification |
|---|---|
| Application | Shear test for steel wire and rope |
| Maximum Force Capacity | ≤ 100 kN |
| Weight | Upper Grip: 1.69 kg Lower Grip: 10.63 kg |
| Working Temperature | Ambient |
| Connection Type | Upper Grip: Φ10 mm pin Lower Grip: Φ10 mm pin |
| Height (A/B) | Upper Grip: 97 mm Lower Grip: 145 mm |
| Width (C) | 150 mm |
| Specimen Size | Φ4, Φ5, Φ6, Φ8 mm |
NGA204A – Tensile Fixture
The NGA204A Tensile Fixture is designed for performing tension tests on aluminum alloy profiles. Built to comply with GB/T 28289-2012 standards, it supports tensile forces up to 20 kN and is optimized for reliable performance under ambient conditions. The fixture uses standard Φ10 mm pin connections and provides stable clamping with symmetrical grip weights and dimensions.
- Application: Tension test for aluminum alloy profiles.
- Maximum Capacity: ≤ 20 kN load.
- Weight: 1.8 kg (upper grip), 1.8 kg (lower grip).
- Working Temperature: Ambient.
- Standard: GB/T 28289-2012.
- Connection Type: Φ10 mm pin (upper and lower grips).
- Height: 105 mm.
- Test Width: 104 mm.
- Grip Width: 148 mm.
Technical Specifications – NGA204A Tensile Fixture
| Parameter | Specification |
|---|---|
| Application | Tension test for aluminum alloy profiles |
| Maximum Force Capacity | ≤ 20 kN |
| Weight | Upper Grip: 1.8 kg Lower Grip: 1.8 kg |
| Working Temperature | Ambient |
| Standard | GB/T 28289-2012 |
| Connection Type | Upper Grip: Φ10 mm pin Lower Grip: Φ10 mm pin |
| Height (A) | 105 mm |
| Test Width (B) | 104 mm |
| Grip Width (C) | 148 mm |
NextGen’s other grips and fixtures are tailored for precise, non-standard testing scenarios across various material types, ensuring full compliance with ASTM, ISO, and DIN testing protocols. Whether you’re evaluating peel strength, puncture resistance, or shear performance, these accessories expand your UTM’s capabilities and allow for deeper insights into material behavior.
Contact our technical team today to integrate these solutions into your existing universal testing equipment.
Related Products
TestStar® Series Grips and Fixtures for Hydraulic UTM Integration
Versatile, High-Performance Fixtures for Advanced Mechanical Testing NextGen’s TestStar® grips and fixtures are purpose-built to deliver superior mechanical testing performance in demanding industrial applications. These high-precision components are engineered to integrate seamlessly with our universal testing machines (UTMs), offering broad […]
Composite Grips and Fixtures for Tensile, Shear, and Delamination Tests
NextGen Material Testing, Inc. offers a complete portfolio of advanced grips and fixtures specifically engineered for composite material testing with universal testing machines. These solutions meet a wide array of international testing standards including ASTM D3039, ISO 527, ASTM D2344, […]
Grips and Fixtures for Tensile, Shear, and Flexural Testing of Wood
Specialized Grips and Fixtures for Wood Tensile, Shear, Bending, and Fastener Withdrawal Testing NextGen offers a robust line of specialized grips and fixtures for wood material testing, supporting universal testing machines (UTM) across industrial and academic laboratories. These components are […]
3-Point and 4-Point Bending Fixtures for Uniform Moment Flexural Testing
Precision 3-Point and 4-Point Bending Fixtures for NextGen Universal Testing Machines NextGen’s bending fixtures are precision-engineered to enable accurate flexural testing of various materials, including metals, ceramics, composites, concrete, bricks, and construction products. These accessories are optimized for seamless integration […]
Wedge Tensile Grips for High-Load Metal and Composite Testing
Precision Wedge Grips for High-Strength Tensile Testing NextGen’s wedge tensile grips are engineered to deliver superior performance in tensile strength testing using Universal Testing Machines (UTMs). These grips use a mechanical wedge action that enhances gripping pressure proportionally with the […]
Pneumatic Grips for Fast and Repeatable Clamping
Precision Clamping Solutions with Compressed-Air Actuation from NextGen NextGen’s pneumatic grips are engineered for precise, high-throughput testing applications using universal testing machines (UTMs). These air-actuated systems ensure uniform clamping pressure, reduced operator fatigue, and faster sample mounting, ideal for quality […]
Shoulder Fixtures for Pull-Off and Component Testing
Precision Shoulder Grips for Tensile Testing on NG-EML and SHM Series UTMs NextGen’s shoulder fixtures are specialized tensile grips designed to accommodate specimens with shoulder geometries. These fixtures are critical for standardized testing in accordance with ISO and ASTM protocols […]
Compression Fixtures for Axial Load Testing of Rigid Samples
Precision Compression Test Fixtures for NG-EML and SHM Series UTMs NextGen’s compression fixtures are designed for high-accuracy compression testing of a range of materials including metals, polymers, elastomers, foams, composites, and construction materials. These fixtures are engineered for seamless integration […]
Bending Fixtures for Standard 3-Point Flexural Testing
3-Point and Marker Bending Fixtures for Flexural Testing NextGen’s bending fixtures are engineered for precision flexural testing of various materials, including thermoplastics, composites, metals, and laminated structures. Designed to operate with NG-EML and SHM Universal Testing Machines, these fixtures offer […]
Eccentric Roller Grips for Thin and Flexible Specimens
Optimized Clamping System for Tensile Testing of Sheet Materials and Soft Specimens Eccentric roller grips from NextGen Test are designed to meet the demanding needs of tensile testing applications involving thin, flexible, or soft materials. Utilizing a friction-based clamping mechanism […]
Self-Tightening Grips for Deformable and Elastic Materials
Self-Tightening Grips for Tensile Testing NextGen’s self-tightening grips are engineered for precise tensile testing of deformable and elastic materials such as elastomers, foams, thin plastics, textiles, and biomedical specimens. These grips automatically increase clamping pressure as tensile force is applied, […]
Snubbing Grips for Wire and Cable Tensile Testing
Overview of Snubbing Grips for Tensile Testing of Wires, Cables, Ropes, and Geogrids Snubbing grips (also known as capstan grips) are designed to secure challenging specimens like steel wires, wire ropes, fiber ropes, textile strips, and geogrids during tensile testing. […]
HDT/VICAT Testing Machine – Thermal Analysis for Plastics NG-HDT
Description The HDT/VICAT testing machine offers high precision, reliability, and efficiency for the thermal analysis of thermoplastics and polymers. Engineered with advanced sensors and high-temperature-resistant components, it ensures minimal deformation, fast response, and precise data transmission, delivering consistent and accurate […]
NextGen GenTor Horizontal Torsion Tester
NextGen GenTor Torsion Tester boasts a horizontal type load frame with high stiffness, ensuring accurate and reliable test results.
DWT-1800 Computer Controlled Drop Weight Impact Testing Machine
DWT-1800 Impact Testing Machine is specifically designed for determining the non-plastic transformation temperature of ferritic steel.
