Description

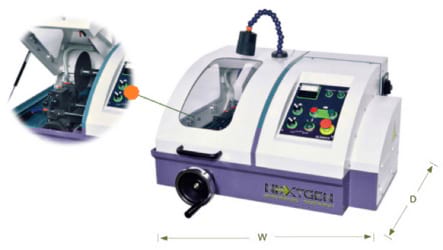

GenCut GL 600, 700 and 800 Series is a compact and powerful, table-top manual abrasive cutter, that fits well into any metallographic or materials oriented lab. It is equipped with a robust 1-3HP motor. The machine is designed for heavy duty continual use.

This benchtop manual abrasive metallographic cutting saw is manufactured for metallographic abrasive cutting purpose. The abrasive cutter machines are available in 250mm or 300mm versions. The unit comes with a fixed speed spindle (or upgrade to the variable speed option) allowing adequate space for the specimens. The abrasive cutter has options for both single and twin vices.

This abrasive metallographic cutter comes standard with a large 50L coolant tank. During the specimen sectioning process the unit's jets cool the saw to avoid overheating by being directed at the saw.

NextGen's NG-600 Series metallographic abrasive cutters are built to last, corrosion resistant and user-friendly. The machine is sure to provide the optimal cutting solution for your metallographic sample preparation needs.

GenCut GL 600 to 800 Low Speed Precision Series
Model # GL 600 GL 700 GL 800
Motor Power 1HP 2HP 3HP
Max. Round Sample Max. Ø3.5cm Max. Ø5cm Max. Ø7cm
Cut-Off Blade Max. Ø23x Ø3.175cm Max Ø25.5x Ø3.175cm Max. Ø25.5x Ø3.175cm
Machine Size (WxDxH) 85x90x50cm 85x90x50cm 95x110x50cm
Weight 154kg 154kg 210kg
Feeding Method Manual
Rotational Speed 2500rpm/3000rpm (50Hz / 60Hz) 2500rpm/3000rpm (50Hz / 60Hz) 2100rpm/2500rpm (50Hz / 60Hz)
Power Supply AC 220 / 380V - 3Ø
Request Quote
