Description

GenPress MSA - Semi-Automatic Mounting Presses for metallographic sample preparation are one of the most popular items in the GenPress - Mounting press line up. These single cylinder MSA I and MSA II metallographic Mounting Press systems provide leading technology for best edge retention in a variety of mold sizes. Our NextGen MSA - Semi Automatic mounting presses have an integrated hydraulic system to apply the necessary compression to form one to three samples at any given time. The MSA - metallographic hot mounting press systems are designed for the preparation of samples for low to medium application requirements and are equipped with a simple controls system to allow for the setting of all testing parameters of the mounting cycle. The heat temperature control is completely automatic once the parameters have been set and are controlled by powerful heating elements. Water cooling is easily controlled with a simple switch on the front of the unit. A recirculating pump is included as standard to avoid having to use a faucet or other water connection. Sample sizes are available in 1", 1.25" 1.5", 2" (25mm, 30mm, 40mm and 50mm). The time savings associated with this state of the art mounting press machine easily justifies the investment.

Technical Specifications

Specification GenPress MSA Series
Sample Dim. (cm) 25mm, 30mm or 1", 1.25" 40mm, 50mm or 1.5", 2"
Control Method Hydraulic Control
Quantity 1-3 Sample per Mounting Cycle
Temperature 0-250°C (1°C/unit)
Heating Power (1 Sample) [GenPress MSA I] 1200W 1600W
Heating Power (3 Samples) [GenPress MSA III] 2400W 3200W
Heating Time Max. 60 min
Cooling Time Max. 30 min
Data Setting 0-40 sets (can set name, pressure, heating temperature, heating time, cooling time)
Machine Size (WxDxH) 58x55x59cm 58x55x71cm
Weight (kg) 80 81

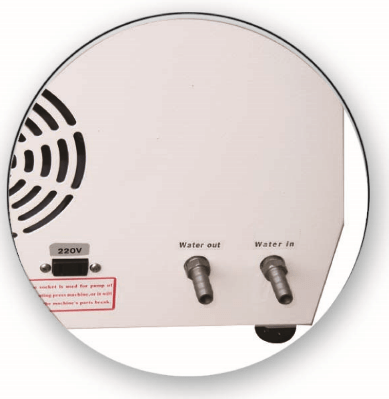

Water Inlet and Outlet Pipes 3/8” water pipes (internal diameter - Ø1cm / external diameter - Ø1.5cm
Cooling System Auto Recirculating Cooling System
Power Supply AC 220V / 1ph
Standard Accessories Mounting Resin: 1kg   Spoon: 1pc   Filter: 1set
Funnel: 1pc   Tweezer 1pc
Option Cylinder kit (upper ram, inner cylinder, lower ram)

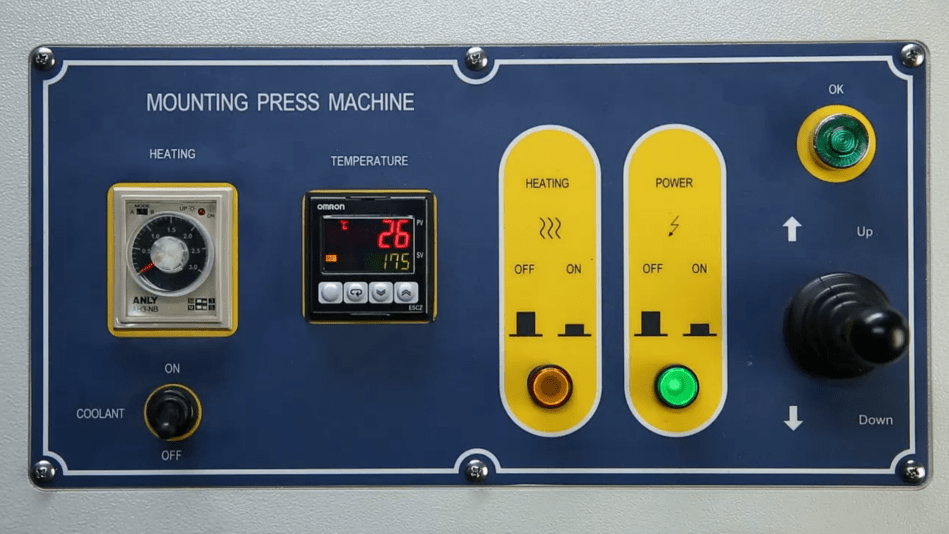

genpress msa series genpress msa series User Friendly Control Panel
