Description

GenGrind N-S

While maintaining the precision of our basic GenGrind N - Manual Metallographic Polisher and Grinder systems, we present our GenGrind N-S - Metallographic Polisher and Grinder systems equipped with a Sample Holder. This metallurgical polisher and grinder is our individual force sample holder which will maintain the height of a single specimen (available in different sizes) for precision grinding and polishing. Simply rotate the handle to control the grinding depth of your specimen. GenGrind N-S Series - Metallographic Polisher and Grinder machine is an affordable metallographic manual grinder and polisher for low to medium volume applications.

The N Series - Metallographic Grinding and Polishing machines are available with either a single or double platen configuration and are available with single motors only. Our basic grinder and polishers are available in 8" (200mm), 10" (250mm) and 12" (300mm) sizes to cover all sample sizes. For customers with a diverse range of applications, GenGrind N-S Series - Metallographic polisher and grinder with sample holding capabilities meets all grinding and polishing requirements. The direction of the wheel can be changed from clockwise to counter clockwise and the speed is variable from 50-600rmp. The N Series polisher and grinders are also equipped with a powerful brushless high quality motor as well as an anti-splash cover. The water flow pipe is easily adjustable for proper cooling and cleaning of your specimens.

GenGrind N-S - Single Platen Metallographic Grinder and Polisher w/ Single Sample Holder

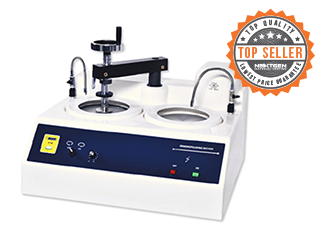

GenGrind N-S-D - Dual Platen and Single Motor Metallographic Grinder and Polisher w/ Single Sample Holder

Technical Specifications

Specifications N-S N-S-D
Platen
Diameter (cm)
Ø20 (8“) Ø25 (10“) Ø20 (8“) Ø25 (10“)
Plate Quantity 1 2
Grinding Method Manual
Grinding Motor 250 W 250 W
Speed (rpm) 50-600 - (Special Requirements can be ordered)
Cooling System 1 2
Machine Type Table Top
Weight (kg) 41 58
Machines Size (WxDxH) cm 45x65x60 75x69x64
Water Inlet Pipe 3/8“ pipe (internal diameter 1cm - external diameter 1.5cm)
Water Outlet Pipe 1“ - (Internal diameter Ø2.6cm - external diameter Ø3.0cm) 1-1/4“ - (Internal diameter Ø3.2cm / external diameter Ø3.6cm)
Power Supply 110/220V 60/50Hz 1ph 110/220V 60/50Hz 1ph
GenGrind N-S Series
GenGrind N-S Series
