Description

GenCut QL Fully Automatic Abrasive cut-off saw uses a cut-off blade ranging from 10" (255mm) to 16" (406mm). These machines are capable of cutting pieces up nearly to 120mm in diameter and with a cutting depth of 200mm height. They are fully automatic cut-off machine, designed with the ease for the end-user in mind. This abrasive fully automatic cut-off systems are equipped with a very large cutting table and are easy to control.

GenCut QL Series
GenCut QL Series

GenCut QL Series

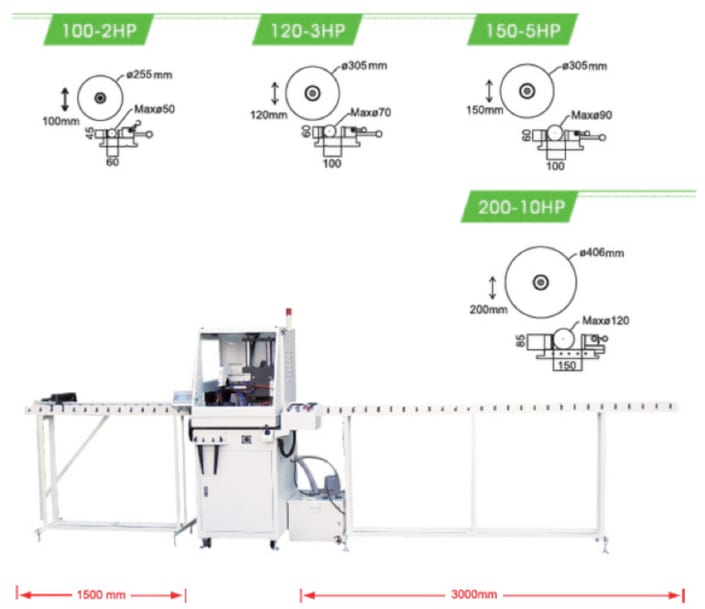

Model # 5A 7A 9A 12A
Motor Power 2HP - 3Ø 3HP - 3Ø 5HP - 3Ø 10HP - 3Ø
Max. Round Sample Max. Ø5cm Max. Ø7cm Max. Ø9cm Max. Ø12cm
Cut-off Blade Max. Ø25.5x Ø3.175cm Max. Ø30.5x3.2 Ø Max. Ø30.5x3.2 Ø Max. Ø40.6x3.2 Ø
Cutting Depth 10cm 12cm 15cm 20cm

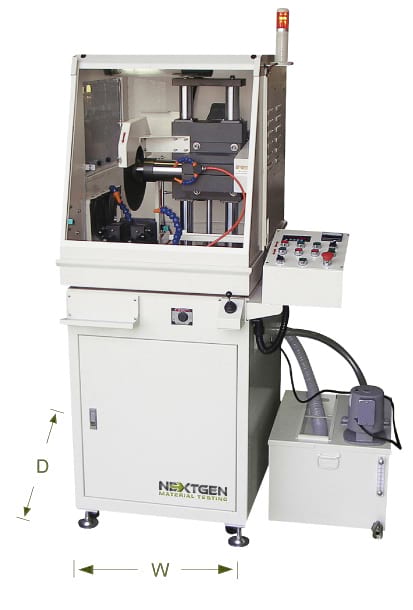

Machine Size (WxDxH) 115x100x180cm 110x110x180cm 115x110x185cm 120x130x200cm
Feeding Method Auto / Manual
Rotational Speed 2500rpm / 3000rpm (50Hz / 60Hz) 2100rpm / 2500 rpm (50Hz / 60Hz) 2100rpm / 2500 rpm (50Hz / 60Hz) 2100rpm / 2500 rpm (50Hz / 60Hz)
Power Supply AC 220 / 380 / 415 / 440V - 3Ø
*Special motors can be ordered GenCut QL Series
